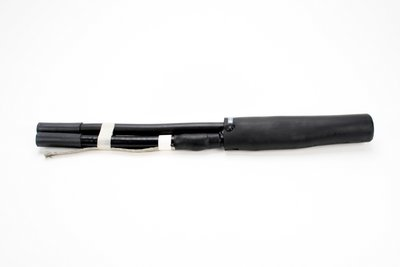

3M 5383 Motor Lead Splicing Kit, 3 Splices/Kit
Product image thumbnail 0
Product image thumbnail 1
$595.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5383
Irby Part # 2927981

Features

  • Designed for use with 30000 Series copper compression lugs or other UL Listed copper lugs
  • Perfect for use with shielded and non-shielded cables
  • Rated for 5/8 kV applications
  • The lug or splice cover is made of EPDM rubber to resist punctures and abrasion damage
  • Includes 6 tubes of silicone grease, 3 cold shrink jacket tubes, 3 cable ties, 3 ground straps and 1 instruction sheet
  • Withstands a temperature range of 194 to 266 degrees F (90 to 130 degrees C)

Specifications

  • Application: Cable Connection
  • Cable Shielding: Non-shielded - Jacketed Concentric Neutral (JCN) - UniShield® - Concentric Neutral (CN) - Ribbon Shield - Wire Shield
  • Cable Type: Concentric Neutral (CN) - Jacketed Concentric Neutral (JCN)
  • Conductor Material: Copper - Aluminum
  • Conductor Sizes: 500 kcmil - 750 kcmil - 1000 kcmil
  • Connection Type: Pigtail (Non-Shielded) - Pigtail (Shielded)
  • Connector Included: No - None
  • Maximum Bolt Length: 1-1/4 in
  • Maximum Bolt Length (Metric): 31.8 mm
  • Maximum Feeder Lead Size: 250 kcmil
  • Maximum Lug Length: 4 in
  • Maximum Lug Length (Metric): 101.6 mm
  • Maximum Motor Lead Size: 250 kcmil
  • Maximum Operating Voltage: 8 kV
  • Maximum Wire Gauge: 500mm²
  • Minimum Wire Gauge: 240mm²
  • Number of Conductors: 1 - 3
  • Product Type: Splice
  • Range Feeder Cable (AWG & kcmil): 1/0-250
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Splice Type: Pigtail or V-stub
  • Typical Splice Length: 35 in
  • Typical Splice Length (Metric): 889 mm
  • Voltage: 5 - 8 kV
  • Voltage Application: Medium Voltage

Overview

UPC 05112855953
GTiN 00051128559536
Color Black
Cable Size 0 - 250
Family Brand Name 3M
Voltage 5/8 kV
Connection Type Pigtail
Applications Cable Connection
