3M 5406 5406 QSI SPLICE KIT
Product image thumbnail 0
Product image thumbnail 1
$180.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5406
Irby Part # 3553263

Features

  • Inline splice to use on jacketed concentric neutral (JCN) or concentric neutral (CN) cables

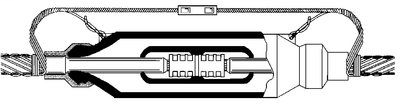

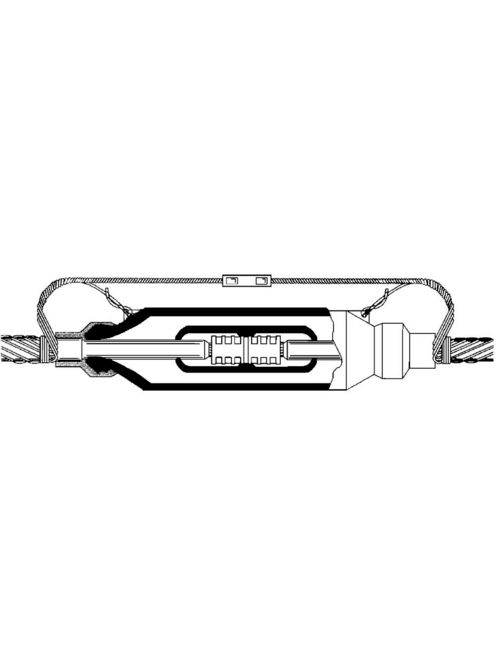

  • 3M™ Molded Rubber QS Inline JCN/CN Splice Kits 5400 Series are inline splices designed for use on 15 kV concentric neutral (CN) or jacketed concentric neutral (JCN) cable. The continuous current rating of each splice is equal to the current rating of the cable it is sized to accommodate. Meets requirements of IEEE 404 for cable joints. Jacketing kit is needed for JCN cable. Each kit makes one splice. Connectors, unless specified, are not included in the kit, and must be ordered separately. Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.
  • Rated for 15 kV cables
  • Meets the requirements of IEEE 404 standards for cable joints

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80610000285
  • Brand: 3M™
  • Cable Shielding: Concentric Neutral (CN) || Jacketed Concentric Neutral (JCN)
  • Case Quantity: 1
  • Conductor Material: Aluminum || Copper
  • Connector Included: None
  • Insulation O.D. Range: 1.060 - 1.210 Inch
  • Insulation Outer Diameter (Imperial): 1.06 in || 1.07 in || 1.08 in || 1.09 in || 1.1 in || 1.11 in || 1.12 in || 1.13 in || 1.14 in || 1.15 in || 1.16 in || 1.17 in || 1.18 in || 1.19 in || 1.2 in || 1.21 in
  • Insulation Outer Diameter (Metric): 26.924 mm || 27.178 mm || 27.432 mm || 27.686 mm || 27.94 mm || 28.194 mm || 28.448 mm || 28.702 mm || 28.956 mm || 29.21 mm || 29.464 mm || 29.718 mm || 29.972 mm || 30.226 mm || 30.48 mm || 30.734 mm
  • Insulation Outside Diameter Range: 1.060 - 1.210 Inch
  • Insulation Outside Diameter Range (Metric): 26.9 - 30.7 mm
  • Manufacturing Origin: USA
  • Maximum Stranded Conductor Size: 250 kcmil (220 mil) || 350 kcmil
  • Number of Conductors: 1
  • Operating Voltage: 15 kV
  • Product Type: Inline Splice
  • Splice Type: Inline

Overview

UPC 05400711842
GTiN 00054007118428
Voltage 15 kV
Splice Type Inline
Product Type Splice
Number of Conductors 1
Cable Type Concentric Neutral (CN); Jacketed Concentric Neutral (JCN)
Family Brand Name 3M
Conductor Material Aluminum; Copper
