3M 5415A QS-III Splice Kit
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$500.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5415A
Irby Part # 2744129

Overview

3M™ 5415A Series Cold Shrink QS-III Splice Kit is a 15kV class inline splice designed to join jacketed concentric neutral (JCN) and concentric neutral (CN) power cables. The cold shrink design fits type MV-90 cables with copper or aluminum conductors while ensuring a quick installation and excellent cable size transitions.

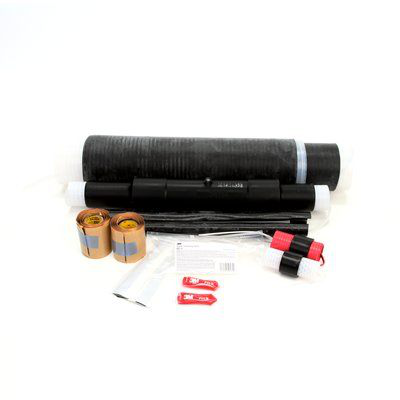

3M™ 5415A Series Cold Shrink QS-III Splice Kit includes 2 adapter tubes, 2 P55/R compound tubes, six 2230 mastic sealing strips, two 2228 mastic tape rolls, a neutral/CC-3 cable cleaning pad, cable preparation template and an instruction booklet. It has a computer-aided design that provides a compact size and optimal distribution of the electrical field. The cold shrink splice body has a specially formulated silicone rubber construction to ensure good high and low temperature performance. The cold shrink jacketing with EPDM rubber construction provides physical protection. The kit meets or exceeds class-rating requirements of IEEE 404 standards.

  • Inline splice for joining jacketed concentric neutral (JCN) and concentric neutral (CN) power cables
  • Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface
  • Designed for feeder and distribution circuits, size transition splicing, direct burial installations, submerged locations and use with standard inline crimp connectors
  • Cable has 0.64 to 1.01-in insulation O.D.
  • Accommodates 2 to 4/0 AWG size copper or aluminum conductors
  • Silicon rubber-splice body provides good high and low temperature performance, and the EPDM rubber jacket offers physical protection
  • Rated for 15 kV class cables
  • Factory-tested partial discharge and AC ensure reliability
  • Meets or exceeds the class rating requirements of IEEE 404 standards

Specifications

  • 3M ID: 80611217805
  • Brand: 3M™
  • Case Quantity: 1
  • Conductor Material: Aluminum, Copper
  • Conductor Sizes: 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG
  • Connector Included: None
  • Insulation O.D. Range: 0.64 - 1.01 Inch
  • Insulation O.D. Range (Metric): 16.3 - 25.7 mm
  • Insulation Outside Diameter Range: 0.64 - 1.01 Inch
  • Number of Conductors: 1
  • Product Series: 5415A, 5416A, 5417A, 5418A Series
  • Product Technology: Cold Shrink
  • Product Type: Splice
  • RoHS 2011/65/EU Compliant: Undetermined
  • RoHS EU Comments: Contact 3M for information
  • Shielding Type: Concentric Neutral (CN), Jacketed Concentric Neutral (JCN)
  • Splice Type: Inline, QS-III, inline
  • Trademark: 3M
  • Voltage: 15 kV
  • Voltage Application: Medium Voltage

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112853470
GTiN 00051128534700
Number of Conductors 1
Conductor Size 2 AWG
Cable Type Concentric Neutral (CN); Jacketed Concentric Neutral (JCN)
Family Brand Name 3M
Conductor Material Aluminum; Copper
Voltage 15,000 Volt
Splice Type QS-III,Inline
Product Type Splice
