3M 5432-CI-1A 5432 CI-1A QSI SPLICE
Product image thumbnail 0
Product image thumbnail 1
$256.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5432-CI-1A
Irby Part # 3447035

Features

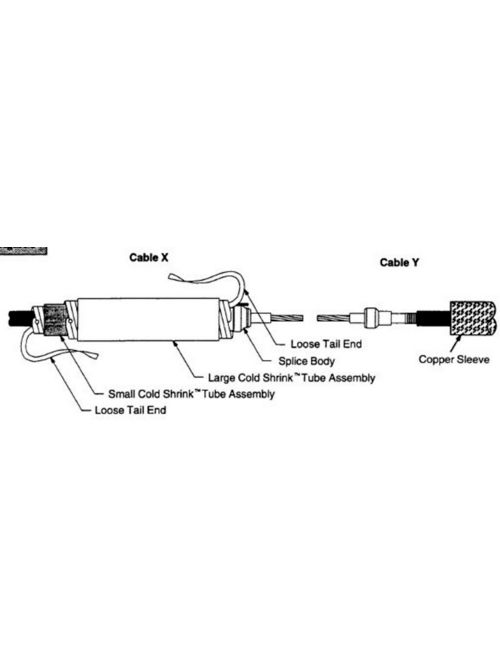

  • Inline splice for use on jacketed concentric neutral (JCN) and concentric neutral (CN) cables
  • Jacketing kit is required for JCN cable
  • Rated for 35 kV cables
  • Meets the requirements of IEEE 404 standards

Specifications

  • Cable Shielding: Jacketed Concentric Neutral (JCN) - Concentric Neutral (CN)
  • Conductor Size Range: 1 AWG (Stranded); 1/0 AWG (Solid)
  • Conductor Sizes: 1/0 AWG Solid - 1 AWG stranded
  • Connector Included: CI-1A
  • Insulation Outer Diameter (Imperial): 1.16 in - 1.2 in - 1.21 in - 1.1 in - 1.19 in - 1.15 in - 1.14 in - 1.07 in - 1.17 in - 1.13 in - 1.11 in - 1.08 in - 1.09 in - 1.06 in - 1.18 in - 1.12 in
  • Insulation Outer Diameter (Metric): 28.448 mm - 26.924 mm - 27.178 mm - 29.464 mm - 27.94 mm - 27.686 mm - 28.194 mm - 28.956 mm - 29.21 mm - 29.718 mm - 28.702 mm - 27.432 mm - 30.734 mm - 29.972 mm - 30.226 mm - 30.48 mm
  • Maximum Solid Conductor Size: 1/0 AWG
  • Maximum Stranded Conductor Size: 1 AWG
  • Number of Conductors: 1
  • Operating Voltage: 35 kV
  • Product Technology: Molded Rubber
  • Product Type: Inline Splice
  • RoHS EU Comments: Contact 3M for information
  • Splice Type: Inline

Overview

UPC 05400708357
GTiN 00054007083573
Number of Conductors 1
Conductor Size 1/0 AWG
Cable Type Concentric Neutral (CN); Jacketed Concentric Neutral (JCN)
Family Brand Name 3M
Voltage 35 kV
Splice Type Inline
Product Type Splice
