3M 5451-CI-21-840 5451 CI-21-840 QS
Product image thumbnail 0
Product image thumbnail 1
$110.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5451-CI-21-840
Irby Part # 3583391

Features

  • Jacketing kit is required for JCN cable

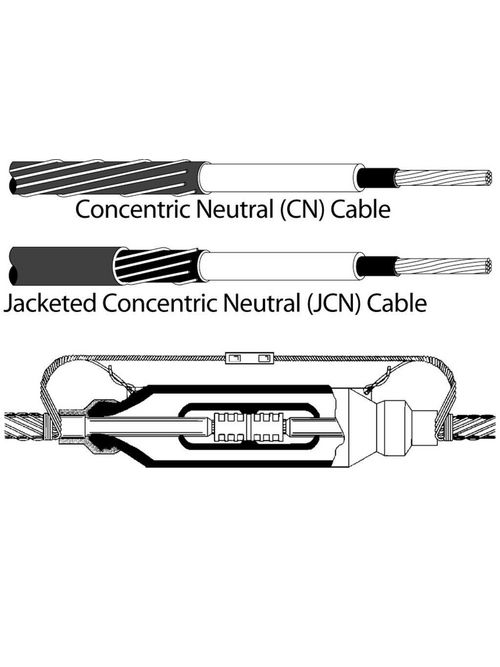

  • The 3M™ Molded Rubber QS-II Inline CN/JCN Cable Splice Kits 5450 Series kits are one-piece inline splices designed for use on 25/28 kV CN and JCNcable. Meets requirements of IEEE 404 for cable joints. The splice is a one-piece molded design made of specially formulated, peroxide cured EPDM rubbers. Each splice is production tested on CN cable to ensure reliability. Each kit makes one splice. Jacketing kit is needed for JCN cable. Connectors, unless specfied, are not included in the kit, and must be ordered separately. Refer to the index to find CI, CI-840 and CI-A series connectors. Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.
  • Meets the requirements of IEEE 404 standards for cable joints
  • Computer design ensures a compact size and optimal distribution of the electrical field
  • Designed for direct burial installations, aerial installations and submerged locations
  • Peroxide-cured EPDM rubber construction offers long term elastic memory

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80610253090
  • Brand: 3M™
  • Cable Shielding: Concentric Neutral (CN) || Jacketed Concentric Neutral (JCN)
  • Case Quantity: 1
  • Conductor Size Range: 2-1 AWG
  • Conductor Sizes: 1 AWG || 2 AWG
  • Connector Included: CI-21-840
  • Insulation O.D. Range: 0.83 - 1.04 Inch
  • Insulation Outer Diameter (Imperial): 0.83 in || 0.84 in || 0.85 in || 0.86 in || 0.87 in || 0.88 in || 0.89 in || 0.9 in || 0.91 in || 0.92 in || 0.93 in || 0.94 in || 0.95 in || 0.96 in || 0.97 in || 0.98 in || 0.99 in || 1 in || 1.01 in || 1.02 in || 1.03 in || 1.04 in
  • Insulation Outer Diameter (Metric): 21.082 mm || 21.336 mm || 21.59 mm || 21.844 mm || 22.098 mm || 22.352 mm || 22.606 mm || 22.86 mm || 23.114 mm || 23.368 mm || 23.622 mm || 23.876 mm || 24.13 mm || 24.384 mm || 24.638 mm || 24.892 mm || 25.146 mm || 25.4 mm || 25.654 mm || 25.908 mm || 26.162 mm || 26.416 mm
  • Insulation Outside Diameter Range: 0.83 - 1.04 Inch
  • Insulation Outside Diameter Range (Metric): 21.1 - 26.4 mm
  • Manufacturing Origin: USA
  • Number of Conductors: 1
  • Operating Voltage: 25 kV || 28 kV
  • Product Type: Inline Splice
  • Splice Type: Inline
  • Voltage: 25/28 kV

Overview

UPC 05400709154
GTiN 00054007091547
Number of Conductors 1
Conductor Size 1 AWG
Cable Type Concentric Neutral (CN); Jacketed Concentric Neutral (JCN)
Family Brand Name 3M
Voltage 25/28 kV
Splice Type Inline
Product Type Splice
