3M 5451R-CIR-1/0-840 25/28 kV Molded Rubber Inline Splice Kit
Usually ships within 16 to 26 Days
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5451R-CIR-1/0-840
Irby Part # 542594

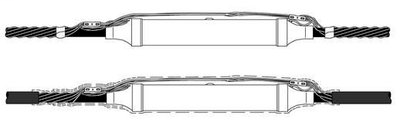

3M™ 5451R Series Molded Rubber QS-II Cable Repair Splice Kit is a 25/28 kV-class inline splice designed to use on JCN and CN distribution class power cables with aluminum or copper conductors. The kit ensures a greater reliability when each splice is production-tested on CN cable.

3M™ 5451R Series Molded Rubber QS-II Cable Repair Splice Kit includes 1 CIR-1/0-840 connector, 1 molded rubber-splice body, 1 template and 2 silicone grease packets. The splice body included in this kit is made of specially formulated, peroxide-cured EPDM rubber to provide long-term sealing. The elongated splice body allows for the removal of up to 6 inches of damaged cable. It has a computer-aided design that provides a compact size and optimal distribution of the electrical field. This kit is perfect for inline repair splicing of damaged cable. ANSI Certified and IEEE Approved.

  • 1-piece, splice for joining JCN and CN distribution class power cables
  • Designed for use with the special inline compression connector for connecting either aluminum or copper conductors
  • Suitable for direct-burial, aerial installations and submerged locations
  • 0.87 to 1.05-in O.D. insulation
  • Accommodates wire size of 1/0 AWG (stranded)
  • Rated for 25/28 kV applications
  • Includes 1 each of CIR-1/0-840 connector, molded rubber-splice body, connector, template, instruction sheet and 2 packets of silicone grease
  • Withstands a temperature range of 194 to 266 degrees F (90 to 130 degrees C)
  • ANSI Certified and IEEE Approved
  • 1 kit/case


  • 3M ID: 80610592133
  • Case Quantity: 1
  • Connector Included: CIR-21-840
  • Insulation O.D. Range: 0.870 - 1.055 Inch
  • Insulation O.D. Range (Metric): 22.1 - 26.8 mm
  • Insulation Outside Diameter Range: 0.870 - 1.055 Inch
  • Number of Conductors: 1
  • Product Series: 5451R Series
  • Product Technology: Molded Rubber
  • Product Type: Splice
  • RoHS 2011/65/EU Compliant: Undetermined
  • RoHS EU Comments: Contact 3M for information
  • Shielding Type: Concentric Neutral (CN), Jacketed Concentric Neutral (JCN)
  • Splice Type: Inline Repair
  • Trademark: 3M
  • Voltage: 25/28 kV

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.


UPC 05400749477
GTiN 00054007494775
Applications This cable repair kit is a specially elongated molded rubber splice designed to repair damaged cable
Cable Type Concentric Neutral (CN); Jacketed Concentric Neutral (JCN)
Family Brand Name 3M
Voltage 25,000/28,000 Volt
Splice Type Inline Repair
Product Type Splice
Number of Conductors 1
