3M 5451R-CIR-21A 25/28 kV Molded Rubber Inline Splice Kit

Features

• 1-piece, splice for joining JCN and CN distribution class power cables
• Designed for use with the special inline compression connector for connecting either aluminum or copper conductors
• 3M™ 5450R Series Molded Rubber QS II Cable Repair Splice Kit is a 25/28 kV class inline splice designed to use on JCN and CN distribution class power cables with aluminum or copper conductors. The kit ensures a greater reliability when each splice is production tested on CN cable.

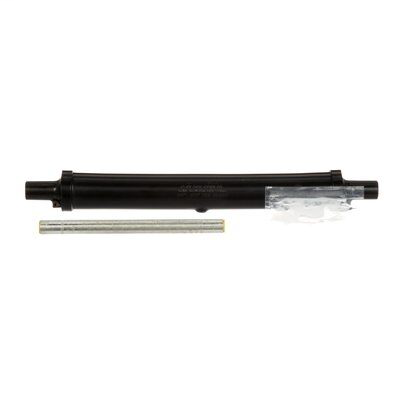

• 3M™ 5450R Series Molded Rubber QS II Cable Repair Splice Kit includes 1 CIR 1/0A connector, 1 molded rubber splice body, 1 template and 2 silicone grease packets. The splice body included in this kit is made of specially formulated, peroxide cured EPDM rubber to provide long term sealing. The elongated splice body allows for the removal of up to 6 inches of damaged cable. It has a computer aided design that provides a compact size and optimal distribution of the electrical field. This kit is perfect for inline repair splicing of damaged cable. ANSI Certified and IEEE Approved.
• Suitable for direct-burial, aerial installations and submerged locations
• Rated for 25/28 kV applications
• Includes 1 each of CIR-1/0A connector, molded rubber-splice body, connector, template, instruction sheet and 2 packets of silicone grease
• Withstands a temperature range of 194 to 266 °F (90 to 130 °C)

Legal Disclaimer

• The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
• Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

• 3M ID: 80610592158
• Brand: 3M™
• Cable Shielding: Concentric Neutral (CN) || Jacketed Concentric Neutral (JCN)
• Case Quantity: 1
• Connector Included: CIR-21A
• Insulation O.D. Range: 0.870 - 1.055 Inch
• Insulation O.D. Range (Metric): 22.1 - 26.8 mm
• Insulation Outer Diameter (Imperial): 0.87 in || 0.88 in || 0.89 in || 0.9 in || 0.91 in || 0.92 in || 0.93 in || 0.94 in || 0.95 in || 0.96 in || 0.97 in || 0.98 in || 0.99 in || 1 in || 1.01 in || 1.02 in || 1.03 in || 1.04 in || 1.05 in
• Insulation Outer Diameter (Metric): 22.098 mm || 22.352 mm || 22.606 mm || 22.86 mm || 23.114 mm || 23.368 mm || 23.622 mm || 23.876 mm || 24.13 mm || 24.384 mm || 24.638 mm || 24.892 mm || 25.146 mm || 25.4 mm || 25.654 mm || 25.908 mm || 26.162 mm || 26.416 mm || 26.67 mm
• Insulation Outside Diameter Range: 0.870 - 1.055 Inch
• Insulation Outside Diameter Range (Metric): 22.1 - 26.8 mm
• Manufacturing Origin: USA
• Maximum Solid Conductor Size: 1 - 1/0 AWG || 1 AWG || 1/0 AWG
• Maximum Stranded Conductor Size: 2 - 1 AWG
• Number of Conductors: 1
• Operating Voltage: 25 kV || 28 kV
• Product Type: Inline Repair
• Splice Type: Inline Repair
