3M 5461-CI-1/0A Molded Rubber Inline 35 kV Splicing Kit
Product image thumbnail 0
Product image thumbnail 1
$198.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5461-CI-1/0A
Irby Part # 22779

Overview

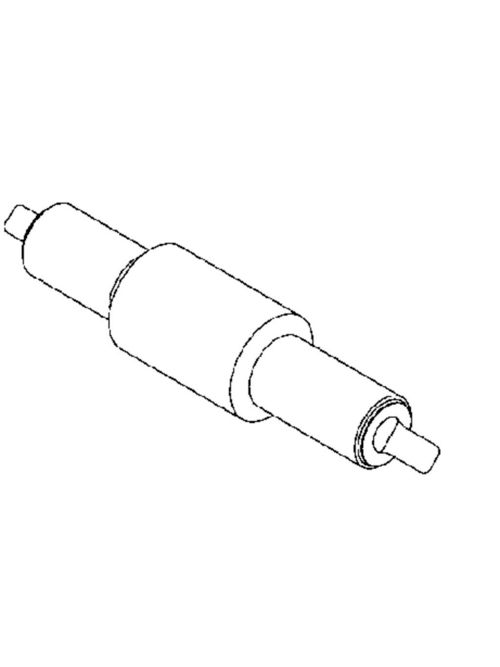

3M™ 5461 Series Molded Rubber QS-II Cable Splice Kit is a 35 kV-class inline splice designed to join JCN and CN distribution class power cables with aluminum or copper conductors. It ensures reliability when each splice is production-tested on CN cable.

3M™ 5461 Series Molded Rubber QS-II Cable Splice Kit includes 1 CI-1/0A connector, 1 porta-pencil, 1 molded rubber-splice body, 2 packets of silicone grease and 1 template. The splice body included in this kit is made of specially formulated, peroxide-cured EPDM rubber to provide long-term sealing. The computer-aided design provides a compact size and optimal distribution of the electrical field. The splice provides accurate inspection of installation by the visual reference of splice positioning. This kit is perfect for inline splicing, direct-burial installations, aerial installations and submerged locations. ANSI Certified and IEEE Approved.

  • The splice features a 1-piece molded design for simple and easy installation
  • Designed for use with JCN and CN cables
  • Suitable for direct-burial, aerial installations and submerged locations
  • 1 to 1.15-in O.D. insulation
  • Accommodates wire size of 1/0 AWG
  • Rated for 35 kV applications
  • The inline splice design allows direct contact between insulation shields
  • Includes 1 CI-1/0A connector, 1 molded rubber-splice body, 1 porta-pencil, 1 template, 1 instruction sheet and 2 packets of silicone grease
  • ANSI Certified and IEEE Approved
  • 1 kit/case

Specifications

  • 3M ID: 80610253116
  • Case Quantity: 1
  • Conductor Sizes: 1/0 AWG
  • Connector Included: CI-1/0A
  • Insulation O.D. Range: 1.00 - 1.15 Inch
  • Insulation Outside Diameter Range: 1.00 - 1.15 Inch
  • Number of Conductors: 1
  • Product Series: 5432, 5433 & 5461 Series
  • Product Technology: Molded Rubber
  • Product Type: Splice
  • RoHS 2011/65/EU Compliant: Undetermined
  • RoHS EU Comments: Contact 3M for information
  • Shielding Type: Concentric Neutral (CN), Jacketed Concentric Neutral (JCN)
  • Solid Conductor Sizes: 1/0 AWG
  • Splice Type: Inline
  • Trademark: 3M
  • Voltage: 35 kV

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05400709156
GTiN 00054007091561
Number of Conductors 1
Conductor Size 1/0 AWG
Cable Type Concentric Neutral (CN); Jacketed Concentric Neutral (JCN)
Family Brand Name 3M
Voltage 35,000 Volt
Splice Type Inline
Product Type Splice
