Inline splice for joining jacketed concentric neutral (JCN) and concentric neutral (CN) power cables

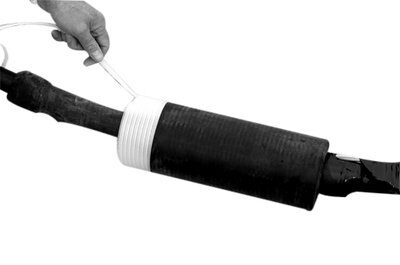

3M™ 5467A Series Cold Shrink QS III Splice Kit is an inline splice designed to join 35kV jacketed concentric neutral (JCN) and concentric neutral (CN) power cables. The cold shrink design fits type MV 90 or type MV 105 cables with copper or aluminum conductors while ensuring a quick installation and excellent cable size transitions.
Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface
3M™ 5467A Series Cold Shrink QS III Splice Kit includes 2 adapter tubes, 2 P55/R compound tubes, six 2230 mastic sealing strips, two 2228 mastic tape rolls, a neutral/CC 3 cable cleaning pad, cable preparation template and an instruction booklet. It has a computer aided design that provides a compact size and optimal distribution of the electrical field. The cold shrink splice body has a specially formulated silicone rubber construction to ensure good high and low temperature performance. Its jacketing with EPDM rubber construction provides physical protection. The kit meets or exceeds class rating requirements of IEEE 404 standards.
Designed for feeder and distribution circuits, size transition splicing, direct burial installations, submerged locations and use with standard inline crimp connectors
Silicon rubber-splice body provides good high and low temperature performance, and the EPDM rubber jacket offers physical protection
Rated for 35 kV cables
High-voltage, production-tested for partial discharge and AC ensure reliability
