3M 5468A-1000-CU 5468A-1000-CU QSII
$1,176.00/ea
Usually ships within 16 to 26 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5468A-1000-CU
Irby Part # 3581184

Overview

3M™ 5468A Series Cold Shrink QS-III Splice Kit is an inline splice designed to join 35kV jacketed concentric neutral (JCN) and concentric neutral (CN) power cables. The cold shrink design fits type MV-90 or type MV-105 cables with copper conductors while ensuring a quick installation and excellent cable size transitions.

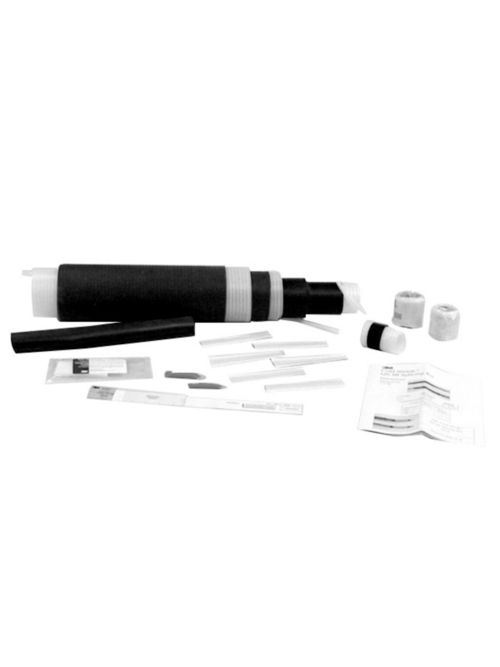

3M™ 5468A Series Cold Shrink QS-III Splice Kit includes an adapter tube, 2 P55/R compound tubes, six 2230 mastic sealing strips, two 2228 mastic tape rolls, a neutral/CC-3 cable cleaning pad, 2 cable preparation templates and an instruction booklet. It has a computer-aided design that provides a compact size and optimal distribution of the electrical field. The cold shrink splice body has a specially formulated silicone rubber construction to ensure good high and low temperature performance. Its jacketing with EPDM rubber construction provides physical protection. The kit meets or exceeds class-rating requirements of IEEE 404 standards.

  • Inline splice for joining jacketed concentric neutral (JCN) and concentric neutral (CN) power cables
  • Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface
  • Designed for feeder and distribution circuits, size transition splicing, direct burial installations, submerged locations and use with standard inline crimp connectors
  • Cable has 1.24 to 2.07-in insulation O.D.
  • Accommodates 1000 kcmil size copper conductors
  • Silicon rubber-splice body provides good high and low temperature performance, and the EPDM rubber jacket offers physical protection
  • Rated for 35 kV cables
  • High-voltage, production-tested for partial discharge and AC ensure reliability
  • Meets or exceeds the class rating requirements of IEEE 404 standards

Specifications

  • 3M ID: 80611232184
  • Case Quantity: 1
  • Conductor Material: Copper
  • Conductor Sizes: 1000 kcmil
  • Connector Included: 10024
  • Insulation O.D. Range: 1.24 - 2.07 Inch
  • Insulation Outside Diameter Range: 1.24 - 2.07 Inch
  • Number of Conductors: 1
  • Product Series: 5467A & 5468A Series
  • Product Technology: Cold Shrink
  • Product Type: Splice
  • RoHS 2011/65/EU Compliant: Undetermined
  • RoHS EU Comments: Contact 3M for information
  • Shielding Type: Concentric Neutral (CN), Jacketed Concentric Neutral (JCN)
  • Trademark: 3M
  • Voltage: 35 kV

Overview

UPC 05400743070
GTiN 00054007430704
Number of Conductors 1
Conductor Size 1000 MCM
Cable Type Concentric Neutral (CN); Jacketed Concentric Neutral (JCN)
Family Brand Name 3M
Conductor Material Copper
Voltage 35,000 Volt
Product Type Splice
