3M 5502 Molded Rubber Inline 15 kV Splice Kit
Product image thumbnail 0
Product image thumbnail 1
$262.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5502
Irby Part # 215999

Features

  • Inline splice to use on tape shield, wire shield, or UniShield® cables
  • Designed for direct burial installations, as well as indoor and outdoor applications
  • Peroxide-cured EPDM rubber construction provides physical protection
  • Rated for 15 kV cables
  • Factory-tested to offer reliability
  • Meets the requirements of IEEE 404 standards

Specifications

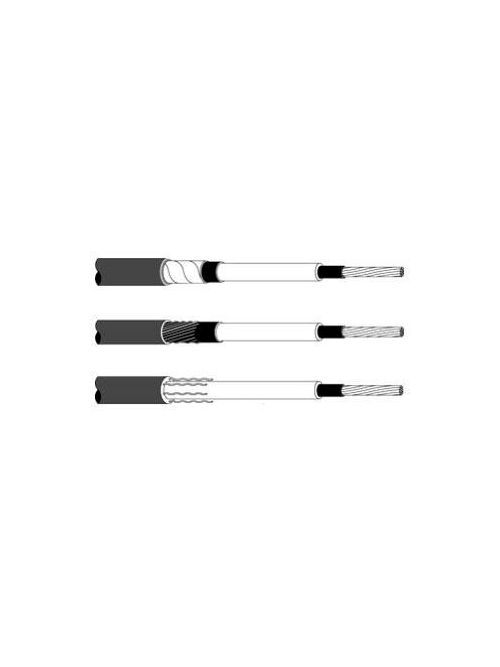

  • Cable Shielding: UniShield® - Concentric Neutral (CN) - Tape Shield - Wire Shield
  • Conductor Material: Copper - Aluminum
  • Connector Included: None
  • Insulation Outer Diameter (Imperial): 1 in - 1.03 in - 0.93 in - 0.96 in - 0.88 in - 1.01 in - 0.9 in - 0.91 in - 1.02 in - 0.99 in - 0.84 in - 0.92 in - 0.87 in - 0.98 in - 0.95 in - 0.85 in - 1.04 in - 0.94 in - 0.86 in - 0.89 in - 1.05 in - 0.97 in
  • Insulation Outer Diameter (Metric): 21.336 mm - 25.4 mm - 25.146 mm - 23.876 mm - 24.384 mm - 21.844 mm - 25.654 mm - 21.59 mm - 22.352 mm - 22.606 mm - 26.416 mm - 25.908 mm - 26.67 mm - 22.098 mm - 23.114 mm - 24.638 mm - 26.162 mm - 24.13 mm - 23.622 mm - 23.368 mm - 24.892 mm - 22.86 mm
  • Maximum Solid Conductor Size: 4/0 AWG
  • Maximum Stranded Conductor Size: 250 kcmil (175 mil) - 3/0 AWG - 2/0 AWG (220 mil) - 4/0 AWG
  • Number of Conductors: 1
  • Operating Voltage: 15 kV
  • Product Technology: Molded Rubber
  • Product Type: Inline Splice
  • RoHS EU Comments: Contact 3M for information
  • Splice Type: Inline

Overview

UPC 05400712294
GTiN 00054007122944
Number of Conductors 1
Cable Type Tape Shield; UniShield(R); Wire Shield
Family Brand Name 3M
Conductor Material Aluminum; Copper
Voltage 15 kV
Splice Type Inline
Product Type Splice
