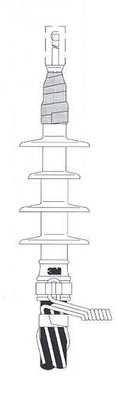

3M 5601-1/0 4 Skirt Concentric Neutral Cable Cold Shrink Termination Kit

Overview

3M Cold Shrink QT-II terminations provide easy installation for a broad spectrum of indoor and outdoor applications. The Cold Shrink QT-II termination is based on specially formulated, track-resistant silicone rubber insulators with built-in Hi-K stress relief. The insulators are pre-stretched around a spiral -wound, plastic core. When the terminator is slipped over a properly prepared cable and the core is removed, the terminator immediately shrinks to the cable`s dimensions. The result is a void-free, flexible seal without special tools or torches. For Concentric Neutral Cables.

Conductor Size Range for

· 5 kV (100%): 3/0 AWG-500 kcmil

· 5 kV (133%): 2/0 AWG-500 kcmil

· 8 kV (100%):1/0 AWG-350 kcmil

· 8 kV (133%): 500-1250 kcmil

· 15 kV:1/0 AWG

Specifications

• Conductor Sizes: 1/0 AWG, 250 kcmil, 2/0 AWG, 500 kcmil, 3/0 AWG, 400 kcmil, 300 kcmil, 4/0 AWG, 350 kcmil
• Cable Insulation Outside Diameter Range (metric): 16.3-28.4 mm
• Agency Approvals: IEEE
• Lug/Stem Connector Included in Kit: Yes
• Product Series: 5600
• Family: QT-II
• Maximum Installed Length: 8.50 in
• Insulation Rejacketing: No
• Shielding Type: Concentric Neutral (CN)
• Voltage: 8 kV, 5 kV, 15 kV
• Product Family: QT-II
• Number of Conductors: 1
• Indoor/Outdoor: Outdoor Skirted
• Trademark: 3M
• BIL: 110 kV
• Breakout Boot: No
• RoHS EU Comments: Contact 3M for information
• Number of Skirts: 4
• RoHS 2011/65/EU Compliant: Undetermined
• Cable Insulation Outside Diameter Range: 0.64-1.12 in
