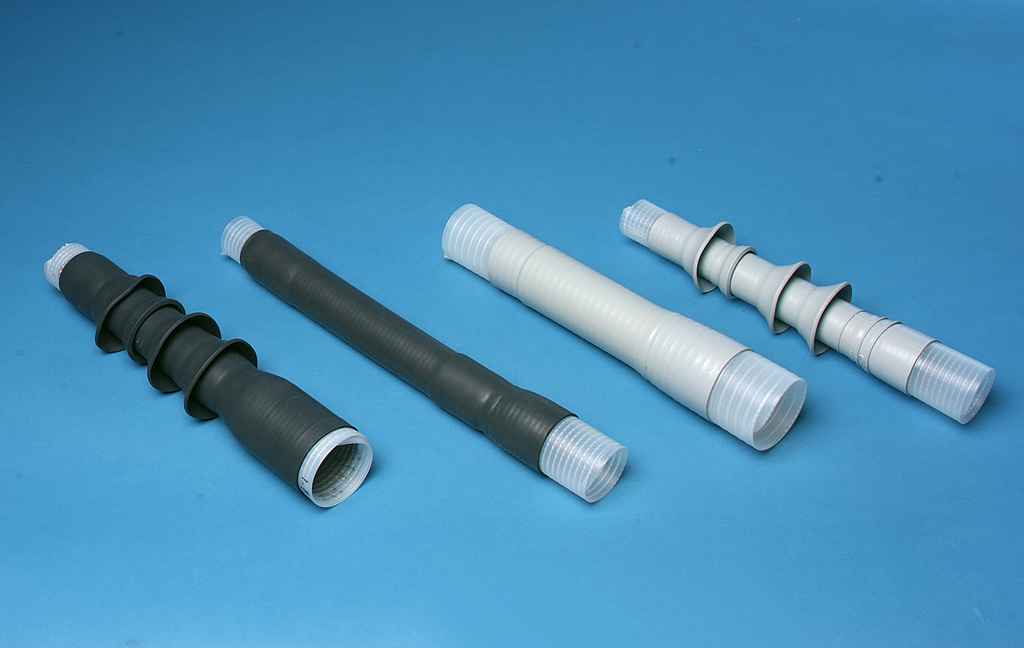

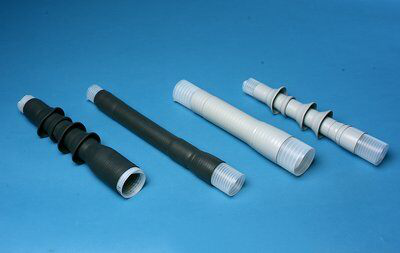

3M 5601-22 COLD SHRINK TERMINATION
$81.00/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5601-22
Irby Part # 3049323

Features

  • One-piece cold shrink termination.
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor, weather exposed applications
  • Silicone rubber insulation is track-resistance and hydrophobic
  • Silicone cold shrink application provides constant radial pressure, "living seal"
  • Withstands voltages of 5 to 15kV and is 110 kV BIL-rated
  • Meets IEEE Standard 48, Class 1 for outdoor, weather-exposed applications

Specifications

  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: 0.637-1.12 in
  • Cable Insulation Outside Diameter Range (Metric): 16-28 mm
  • Cable Shielding: Concentric Neutral (CN)
  • Cable Type: Stranded - Compact/Solid
  • Conductor Sizes: 2 AWG
  • Conductor Size Unit: AWG
  • Family: QT-II
  • Indoor/Outdoor: Outdoor
  • Insulation Level: 133% - 100%
  • Insulation Outer Diameter (Imperial): 1.04 in - 0.86 in - 0.94 in - 0.8 in - 0.79 in - 0.77 in - 0.69 in - 1.09 in - 1 in - 0.67 in - 1.03 in - 0.73 in - 0.75 in - 1.07 in - 1.05 in - 0.88 in - 0.93 in - 0.68 in - 0.92 in - 0.87 in - 0.96 in - 1.1 in - 0.9 in - 0.64 in - 0.83 in - 0.97 in - 0.99 in - 0.85 in - 1.12 in - 0.98 in - 1.01 in - 0.66 in - 0.74 in - 0.82 in - 0.7 in - 1.08 in - 0.78 in - 0.81 in - 0.76 in - 1.11 in - 0.95 in - 0.91 in - 0.89 in - 0.65 in - 1.02 in - 0.84 in - 0.72 in - 0.71 in - 1.06 in
  • Insulation Outer Diameter (Metric): 27.94 mm - 18.542 mm - 21.59 mm - 16.51 mm - 23.114 mm - 23.876 mm - 17.526 mm - 21.082 mm - 21.336 mm - 25.654 mm - 25.4 mm - 23.368 mm - 22.098 mm - 25.908 mm - 17.272 mm - 28.448 mm - 24.638 mm - 24.384 mm - 21.844 mm - 26.924 mm - 16.256 mm - 18.034 mm - 27.686 mm - 16.764 mm - 20.066 mm - 27.178 mm - 27.432 mm - 24.13 mm - 18.288 mm - 25.146 mm - 18.796 mm - 24.892 mm - 20.574 mm - 20.32 mm - 26.416 mm - 22.86 mm - 28.194 mm - 19.05 mm - 26.67 mm - 26.162 mm - 19.812 mm - 17.018 mm - 22.606 mm - 19.558 mm - 22.352 mm - 17.78 mm - 19.304 mm - 20.828 mm - 23.622 mm
  • Insulation Rejacketing: No
  • Number of Conductors: 1
  • Number of Skirts: 4
  • RoHS EU Comments: Contact 3M for information
  • Termination Type: Single Termination
  • Voltage: 5 kV - 15 kV - 8 kV

Overview

UPC 05400713563
Family Brand Name 3M
