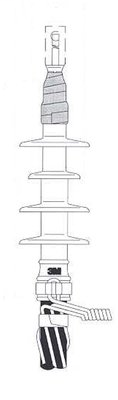

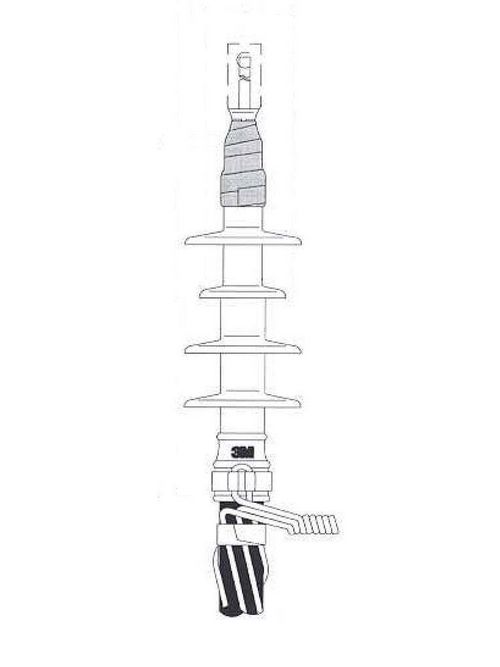

3M 5601 4 Skirt Concentric Neutral Cable Cold Shrink Termination Kit

Features

• One-piece cold shrink termination.
• High dielectric-constant material regulates the distribution of electric field stress
• 3M™ Cold Shrink QT II 5600 & 5680 Series Termination Kit includes a 4 skirt, 1 piece termination. It ensures a pliable, tight seal for concentric neutral cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 15kV.
• Suitable for outdoor, weather exposed applications
• Silicone rubber insulation is track-resistance and hydrophobic
• Silicone cold shrink application provides constant radial pressure, "living seal"
• Withstands voltages of 5 to 15kV and is 110 kV BIL-rated
• Meets IEEE Standard 48, Class 1 for outdoor, weather-exposed applications

Legal Disclaimer

• The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
• Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

• 3M ID: 80610154611
• Agency Approvals: IEEE
• Application: Cable Termination
• Brand: 3M™
• Breakout Boot: No
• Cable Insulation Outside Diameter Range: 0.64-1.12 in
• Cable Insulation Outside Diameter Range (Metric): 16.3-28.4 mm
• Cable Shielding: Concentric Neutral (CN)
• Case Quantity: 1
• Conductor Size by Voltage: (5 kV, 100%) 3/0 AWG-500 kcmil, (5 kV, 133%) 2/0 AWG-500 kcmil, (8 kV, 100%) 2/0 AWG-500 kcmil, (8 kV, 133%) 1/0 AWG-350 kcmil, (15 kV) 2-4/0 AWG
• Conductor Sizes: 1 AWG || 1/0 AWG || 2 AWG || 2/0 AWG || 250 kcmil || 3/0 AWG || 300 kcmil || 350 kcmil || 4/0 AWG || 400 kcmil || 500 kcmil
• Family: QT-II
• Indoor/Outdoor: Outdoor Skirted
• Insulation Level: 100% || 133%
• Insulation Outer Diameter (Imperial): 0.64 in || 0.65 in || 0.66 in || 0.67 in || 0.68 in || 0.69 in || 0.7 in || 0.71 in || 0.72 in || 0.73 in || 0.74 in || 0.75 in || 0.76 in || 0.77 in || 0.78 in || 0.79 in || 0.8 in || 0.81 in || 0.82 in || 0.83 in || 0.84 in || 0.85 in || 0.86 in || 0.87 in || 0.88 in || 0.89 in || 0.9 in || 0.91 in || 0.92 in || 0.93 in || 0.94 in || 0.95 in || 0.96 in || 0.97 in || 0.98 in || 0.99 in || 1 in || 1.01 in || 1.02 in || 1.03 in || 1.04 in || 1.05 in || 1.06 in || 1.07 in || 1.08 in || 1.09 in || 1.1 in || 1.11 in || 1.12 in
• Insulation Outer Diameter (Metric): 16.256 mm || 16.51 mm || 16.764 mm || 17.018 mm || 17.272 mm || 17.526 mm || 17.78 mm || 18.034 mm || 18.288 mm || 18.542 mm || 18.796 mm || 19.05 mm || 19.304 mm || 19.558 mm || 19.812 mm || 20.066 mm || 20.32 mm || 20.574 mm || 20.828 mm || 21.082 mm || 21.336 mm || 21.59 mm || 21.844 mm || 22.098 mm || 22.352 mm || 22.606 mm || 22.86 mm || 23.114 mm || 23.368 mm || 23.622 mm || 23.876 mm || 24.13 mm || 24.384 mm || 24.638 mm || 24.892 mm || 25.146 mm || 25.4 mm || 25.654 mm || 25.908 mm || 26.162 mm || 26.416 mm || 26.67 mm || 26.924 mm || 27.178 mm || 27.432 mm || 27.686 mm || 27.94 mm || 28.194 mm || 28.448 mm
• Insulation Rejacketing: No
• Lug/Stem Connector Included in Kit: No
• Manufacturing Origin: USA
• Maximum Installed Length: 8.50 in
• Number of Conductors: 1
• Number of Skirts: 4
• Voltage: 15 kV || 5 kV || 8 kV
