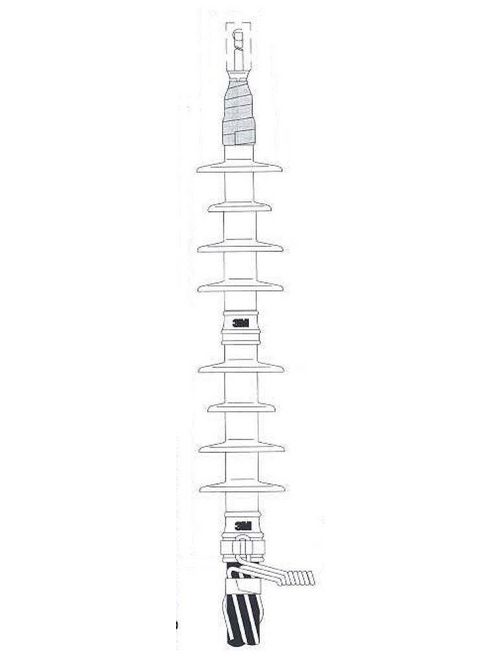

3M™ Cold Shrink QT-II 5600 & 5680 Series Termination Kit includes an 8-skirt, 1-piece termination. It ensures a pliable, tight seal for concentric neutral cables. The conjunction of high dielectric-constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.
3M™ Cold Shrink QT-II 5600 & 5680 Series Termination Kit is designed for terminating medium voltage cables in outdoor applications. When this 8-skirt, non-jacketed terminal's core is unwound, it shrinks over the cable and ensures a leak-proof, ideal fit. The track-resistant, silicone rubber insulation of the termination has a hydrophobic property and offers a long-lasting service life while minimizing leakage currents in wet conditions. IEEE Standard 48 Approved for Class 1 terminations.
- Provides a void-free seal to concentric neutral cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications
- Termination has 0.84 to 1.38-in insulation O.D.
- Accommodates wire sizes of 350 to 750 kcmil at 5kV 100%, 350 to 750 kcmil at 5kV 133%/8 kV 100%, 250 to 750 kcmil at 8 kV 133%, 250 to 500 kcmil at 15kV, 1/0 AWG to 350 kcmil at 25/28 kV, 1 to 4/0 AWG at 35kV
- Molded, silicone rubber insulation offers durability and reduces leakage currents in damp conditions
- Withstands voltages of 5 to 35kV and is 200 kV BIL-rated
- Includes an 8-skirt, 1-piece, cold shrink termination
- IEEE Standard 48 Approved for Class 1 terminations
- 3M ID: 80610154793
- Agency Approvals: IEEE
- BIL: 200 kV
- Breakout Boot: No
- Cable Insulation Outside Diameter Range: 0.84-1.38 in
- Cable Insulation Outside Diameter Range (metric): 21.3-35.1 mm
- Case Quantity: 1
- Conductor Size by Voltage: (5 kV, 100%) 350-750 kcmil, (5 kV, 133%) 350-750 kcmil, (8 kV, 100%) 350-750 kcmil, (8 kV, 133%) 250-750 kcmil, (15 kV) 250-500 kcmil, (25/28 kV) 1/0 AWG-350 kcmil, (35 kV) 1-4/0 AWG
- Conductor Sizes: 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3 AWG, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil, 500 kcmil, 600 kcmil, 750 kcmil
- Family: QT-II
- Indoor/Outdoor: Indoor Non-skirted
- Insulation Rejacketing: No
- Lug/Stem Connector Included in Kit: No
- Maximum Installed Length: 16.00 in
- Maximum Installed Length (metric): 40.64 cm
- Number of Conductors: 3
- Number of Skirts: 8
- Product Series: 5600
- RoHS 2011/65/EU Compliant: Undetermined
- RoHS EU Comments: Contact 3M for information
- Shielding Type: Concentric Neutral (CN)
- Trademark: 3M
- Voltage: 15 kV, 25/28 kV, 35 kV, 5 kV, 8 kV
- Manufacturing Origin: USA
- The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
- Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
