3M 5625K 5625K QTII INDOOR TERMINAT
$550.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5625K
Irby Part # 22795

Overview

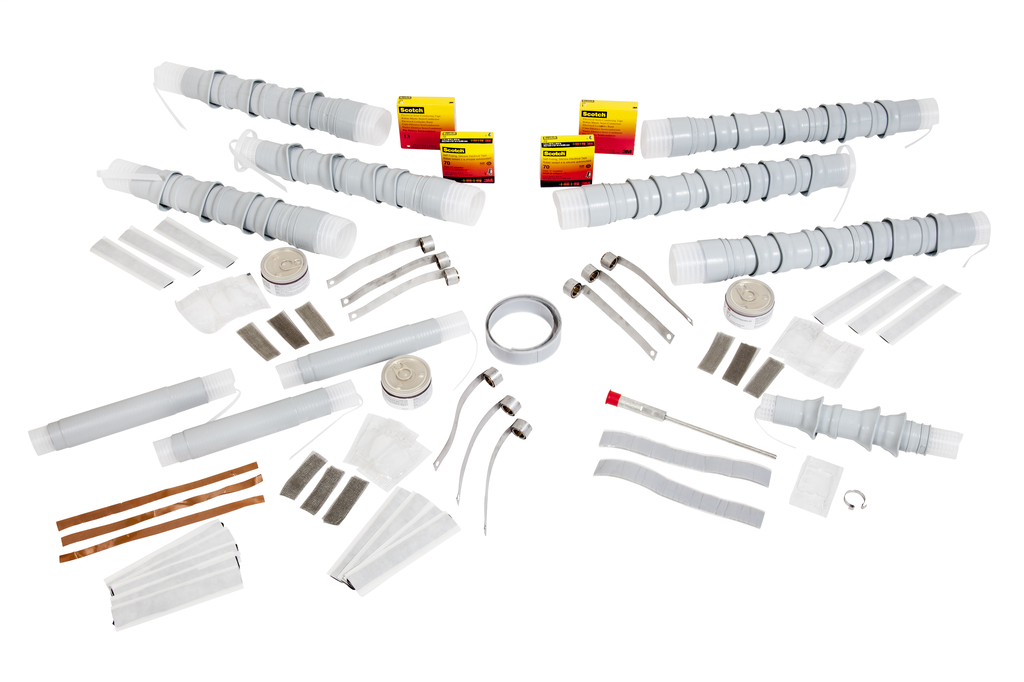

3M Cold Shrink QT-II terminations provide easy installation for a broad spectrum of indoor and outdoor applications. The Cold Shrink QT-II termination is based on specially formulated, track-resistant silicone rubber insulators with built-in Hi-K stress relief. The insulators are pre-stretched around a spiral -wound, plastic core. When the terminator is slipped over a properly prepared cable and the core is removed, the terminator immediately shrinks to the cable`s dimensions. The result is a void-free, flexible seal without special tools or torches. For Tape, Wire, an UniShield Shield Cable.

Conductor Size Range for

· 5 kV (100%): 600-1500 kcmil

· 5 kV (133%): 600-1500 kcmil

· 8 kV (100%): 600-1500 kcmil

· 8 kV (133%): 500-1250 kcmil

· 15 kV (100%): 500-1250 kcmil

· 15 kV (133%): 350-1000 kcmil

Specifications

  • Indoor/Outdoor: Indoor Non-skirted
  • Voltage: 8 kV, 5 kV, 15 kV
  • BIL: 110 kV
  • Insulation Rejacketing: No
  • Insulation Level: 100%, 133%
  • Number of Conductors: 1
  • Cable Insulation Outside Diameter Range (metric): 27.7-45.7 mm
  • Family: QT-II
  • RoHS 2011/65/EU Compliant: Undetermined
  • Conductor Sizes: 1500 kcmil, 750 kcmil, 500 kcmil, 1000 kcmil, 800 kcmil, 700 kcmil, 600 kcmil, 400 kcmil, 1250 kcmil, 900 kcmil, 350 kcmil
  • Product Family: QT-II
  • Trademark: 3M
  • Number of Skirts: 0
  • China RoHS - Below MCV: Undetermined
  • Breakout Boot: No
  • Lug/Stem Connector Included in Kit: No
  • Maximum Installed Length: 11.00 in
  • Cable Insulation Outside Diameter Range: 1.09-1.80 in
  • Product Series: 5620K
  • Agency Approvals: IEEE

Documents

Overview

UPC 05112860893
GTiN 00051128608937
Conductor Size 500 MCM
Applications Designed for terminating solid dielectric shielded power cable rated 5-15kV with ribbon shield, wire shield, and UniShield constructions
Cable Type Ribbon shield, wire shield or UniShield
Family Brand Name 3M
Voltage 8 kV
Indoor Outdoor Indoor Non-skirted
