3M 5635K Cold Shrink 3 Terms/Kit Skirted Termination Kit
Product image thumbnail 0
Product image thumbnail 1
$575.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5635K
Irby Part # 22797

Features

  • One-piece cold shrink termination.
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor, weather exposed applications
  • Silicone rubber insulation is track-resistance and hydrophobic
  • Silicone cold shrink application provides constant radial pressure, "living seal"
  • Withstands voltages of 5 to 15kV and is 110 kV BIL-rated

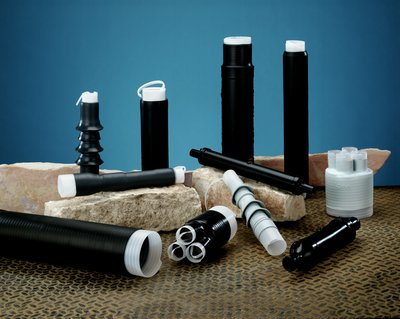

  • Includes three 4-skirt, 1-piece, cold shrink terminations
  • Meets IEEE Standard 48, Class 1 for outdoor, weather-exposed applications

Specifications

  • Application: Cable Termination
  • BIL: 110 kV
  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: 0.84-1.33 in
  • Cable Insulation Outside Diameter Range (Metric): 21.3-33.8 mm
  • Cable Shielding: UniShield® - Wire-Over-Tape Shield - Tape Shield - Wire Shield
  • Conductor Size by Voltage: (5 kV, 100%) 350-750 kcmil, (5 kV, 133%) 300-750 kcmil, (8 kV, 100%) 300-750 kcmil, (8 kV, 133%) 250-600 kcmil, (15 kV, 100%) 3/0 AWG-500 kcmil, (15 kV, 133%) 2/0 AWG-350 kcmil
  • Conductor Sizes: 350 kcmil - 300 kcmil - 3/0 AWG - 4/0 AWG - 400 kcmil - 700 kcmil - 250 kcmil - 750 kcmil - 500 kcmil - 600 kcmil - 2/0 AWG
  • Family: QT-II
  • Indoor/Outdoor: Outdoor Skirted
  • Insulation Level: 133% - 100%
  • Insulation Outer Diameter (Imperial): 1.1 in - 1.18 in - 0.92 in - 0.9 in - 1.3 in - 1.06 in - 1.09 in - 0.94 in - 1.29 in - 1.12 in - 1.23 in - 1.21 in - 0.88 in - 1.14 in - 1.03 in - 0.89 in - 1.32 in - 1.22 in - 1.15 in - 0.91 in - 1.19 in - 1.05 in - 1.33 in - 1.24 in - 1.08 in - 1.2 in - 1.07 in - 1.17 in - 0.86 in - 1.04 in - 1.13 in - 1.28 in - 0.84 in - 0.95 in - 1.11 in - 1.16 in - 0.98 in - 0.93 in - 0.96 in - 1.26 in - 1 in - 1.25 in - 1.27 in - 0.99 in - 1.02 in - 1.01 in - 1.31 in - 0.85 in - 0.97 in - 0.87 in
  • Insulation Outer Diameter (Metric): 32.004 mm - 28.956 mm - 30.734 mm - 21.59 mm - 27.178 mm - 26.67 mm - 27.686 mm - 22.606 mm - 22.86 mm - 23.622 mm - 33.528 mm - 26.416 mm - 23.368 mm - 32.258 mm - 23.114 mm - 30.226 mm - 29.718 mm - 32.766 mm - 26.924 mm - 25.654 mm - 24.892 mm - 24.13 mm - 24.384 mm - 28.448 mm - 31.242 mm - 29.972 mm - 33.782 mm - 22.352 mm - 32.512 mm - 27.432 mm - 31.75 mm - 26.162 mm - 21.844 mm - 24.638 mm - 27.94 mm - 25.908 mm - 33.02 mm - 22.098 mm - 31.496 mm - 25.4 mm - 21.336 mm - 30.48 mm - 30.988 mm - 33.274 mm - 28.702 mm - 25.146 mm - 28.194 mm - 29.21 mm - 29.464 mm - 23.876 mm
  • Insulation Rejacketing: No
  • Lug/Stem Connector Included in Kit: No
  • Maximum Installed Length: 12.00 in
  • Number of Conductors: 1
  • Number of Skirts: 4
  • Product Color: Gray
  • RoHS EU Comments: Contact 3M for information
  • Voltage: 5 kV - 8 kV - 15 kV

Overview

UPC 05400712257
GTiN 00054007122579
Conductor Size 2/0 AWG; 250 MCM; 3/0 AWG; 300 MCM; 350 MCM; 4/0 AWG; 400 MCM; 500 MCM; 600 MCM; 700 MCM; 750 MCM
Applications Cable Termination
Cable Type Tape Shield; UniShield(R); Wire Shield
Family Brand Name 3M
Voltage 5 kV
Indoor Outdoor Outdoor Skirted
Color Gray
