3M 5642 Cold Shrink 4 Skirt Jacketed Concentric Neutral Termination Kit
Product image thumbnail 0
Product image thumbnail 1
$86.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5642
Irby Part # 36242

Features

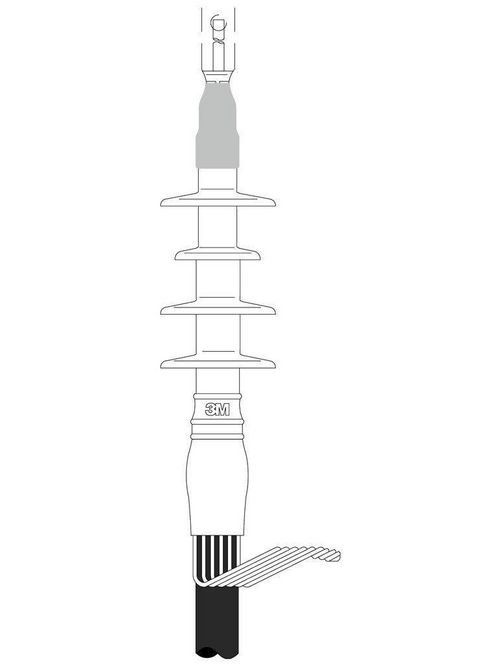

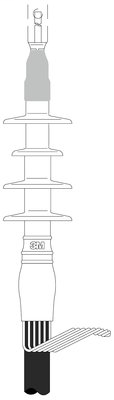

  • One-piece cold shrink termination.
  • 3M™ Cold Shrink QT II 5640 & 5650 Series Termination Kit includes a 4 skirt, 1 piece termination. It ensures a pliable, tight seal for jacketed concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages up to 15kV.
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor, weather exposed applications
  • Silicone rubber insulation is track-resistance and hydrophobic
  • Silicone cold shrink application provides constant radial pressure, "living seal"
  • Voltage ratings: 4 skirt kits up to 15kV, 110 kV BIL; 6 skirt kits up to 25/28 kV, 150 kV BIL; 8 skirt kits up to 35 kV, 200 kV BIL
  • Meets IEEE Standard 48, Class 1 for outdoor, weather-exposed applications

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80610154991
  • Agency Approvals: IEEE
  • Application: Cable Termination
  • Brand: 3M™
  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: 0.84-1.38 in
  • Cable Insulation Outside Diameter Range (Metric): 21.3-35.1 mm
  • Cable Shielding: Concentric Neutral (CN) || Jacketed Concentric Neutral (JCN)
  • Cable Type: Jacketed Concentric Neutral (JCN)
  • Case Quantity: 1
  • Color Family: Gray
  • Conductor Size by Voltage: (15 kV) 3/0 AWG-350 kcmil
  • Conductor Size Range: 70 - 240 mm²
  • Conductor Sizes: 250 kcmil || 3/0 AWG || 300 kcmil || 350 kcmil || 4/0 AWG
  • Dielectric Strength (V/mil): 507 V/mil
  • Family: QT-II
  • Indoor/Outdoor: Outdoor Skirted
  • Insulation Level: 100% || 133%
  • Insulation O.D. Range (Metric): 21.3-35.1 mm
  • Insulation Outer Diameter (Imperial): 0.84 in || 0.85 in || 0.86 in || 0.87 in || 0.88 in || 0.89 in || 0.9 in || 0.91 in || 0.92 in || 0.93 in || 0.94 in || 0.95 in || 0.96 in || 0.97 in || 0.98 in || 0.99 in || 1 in || 1.01 in || 1.02 in || 1.03 in || 1.04 in || 1.05 in || 1.06 in || 1.07 in || 1.08 in || 1.09 in || 1.1 in || 1.11 in || 1.12 in || 1.13 in || 1.14 in || 1.15 in || 1.16 in || 1.17 in || 1.18 in || 1.19 in || 1.2 in || 1.21 in || 1.22 in || 1.23 in || 1.24 in || 1.25 in || 1.26 in || 1.27 in || 1.28 in || 1.29 in || 1.3 in || 1.31 in || 1.32 in || 1.33 in || 1.34 in || 1.35 in || 1.36 in || 1.37 in || 1.38 in
  • Insulation Outer Diameter (Metric): 21.336 mm || 21.59 mm || 21.844 mm || 22.098 mm || 22.352 mm || 22.606 mm || 22.86 mm || 23.114 mm || 23.368 mm || 23.622 mm || 23.876 mm || 24.13 mm || 24.384 mm || 24.638 mm || 24.892 mm || 25.146 mm || 25.4 mm || 25.654 mm || 25.908 mm || 26.162 mm || 26.416 mm || 26.67 mm || 26.924 mm || 27.178 mm || 27.432 mm || 27.686 mm || 27.94 mm || 28.194 mm || 28.448 mm || 28.702 mm || 28.956 mm || 29.21 mm || 29.464 mm || 29.718 mm || 29.972 mm || 30.226 mm || 30.48 mm || 30.734 mm || 30.988 mm || 31.242 mm || 31.496 mm || 31.75 mm || 32.004 mm || 32.258 mm || 32.512 mm || 32.766 mm || 33.02 mm || 33.274 mm || 33.528 mm || 33.782 mm
  • Insulation Rejacketing: No
  • Jacket Outside Diameter Range: 1.19-1.72 in
  • Jacket Outside Diameter Range (Metric): 30.2-43.6 mm
  • Lug/Stem Connector Included in Kit: No
  • Manufacturing Origin: USA
  • Material: Silicone Rubber
  • Maximum Installed Length: 10.00 in
  • Number of Conductors: 1
  • Number of Skirts: 4
  • Product Color: Gray
  • Voltage: 15 kV
  • Voltage Rating: 12/20 KV

Overview

UPC 05400711970
GTiN 00054007119708
Conductor Size 250 MCM; 3/0 AWG; 300 MCM; 350 MCM; 4/0 AWG
Applications Outdoor
Cable Type Jacketed Concentric Neutral (JCN)
Family Brand Name 3M
Voltage 15 kV
Indoor Outdoor Indoor Non-skirted
Color Gray
Material Silicone Rubber
