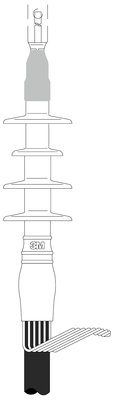

3M 5643 Cold Shrink 4 Skirt Jacketed Concentric Neutral Termination Kit
$184.00/ea
Usually ships within 16 to 26 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5643
Irby Part # 45825

Overview

3M Cold Shrink QT-II terminations provide easy installation for a broad spectrum of indoor and outdoor applications. The Cold Shrink QT-II termination is based on specially formulated, track-resistant silicone rubber insulators with built-in Hi-K stress relief. The insulators are pre-stretched around a spiral -wound, plastic core. When the terminator is slipped over a properly prepared cable and the core is removed, the terminator immediately shrinks to the cable`s dimensions. The result is a void-free, flexible seal without special tools or torches. For Jacketed Concentric Neutral Cable

Conductor Size Range for

ยท 15 kV: 400-600 kcmil

Specifications

  • Cable Insulation Outside Diameter Range: 1.08-1.80 in
  • Trademark: 3M
  • Cable Insulation Outside Diameter Range (metric): 27.4-45.7 mm
  • Conductor Sizes: 500 kcmil, 450 kcmil, 700 kcmil, 600 kcmil, 400 kcmil
  • Shielding Type: Jacketed Concentric Neutral (JCN)
  • RoHS 2011/65/EU Compliant: Undetermined
  • Indoor/Outdoor: Outdoor Skirted
  • Maximum Installed Length: 11.00 in
  • Voltage: 15 kV
  • Lug/Stem Connector Included in Kit: No
  • Product Series: 5640
  • Insulation Level: 100%, 133%
  • RoHS EU Comments: Contact 3M for information
  • BIL: 110 kV
  • Product Family: QT-II
  • Number of Conductors: 1
  • Family: QT-II
  • Number of Skirts: 4
  • Breakout Boot: No
  • Agency Approvals: IEEE
  • Insulation Rejacketing: No

Documents

Overview

UPC 05400711972
GTiN 00054007119722
Conductor Size 400 MCM; 450 MCM; 500 MCM; 600 MCM; 700 MCM
Applications Outdoor
Cable Type Jacketed Concentric Neutral (JCN)
Family Brand Name 3M
Voltage 15,000 Volt
Indoor Outdoor Outdoor Skirted
