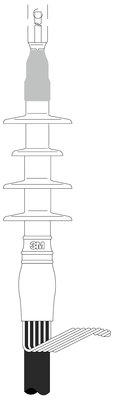

3M 5647 Cold Shrink 8 Skirt Jacketed Concentric Neutral Termination Kit
Product image thumbnail 0
Product image thumbnail 1
$268.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5647
Irby Part # 2909036

Features

  • One-piece cold shrink termination.
  • 3M™ Cold Shrink QT II 5640 & 5650 Series Termination Kit includes a 4 skirt, 1 piece termination. It ensures a pliable, tight seal for jacketed concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages up to 15kV.
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor, weather exposed applications
  • Silicone rubber insulation is track-resistance and hydrophobic
  • Silicone cold shrink application provides constant radial pressure, "living seal"
  • Voltage ratings: 4 skirt kits up to 15kV, 110 kV BIL; 6 skirt kits up to 25/28 kV, 150 kV BIL; 8 skirt kits up to 35 kV, 200 kV BIL
  • Meets IEEE Standard 48, Class 1 for outdoor, weather-exposed applications

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80610155048
  • Agency Approvals: IEEE
  • Brand: 3M™
  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: 1.08-1.80 in
  • Cable Insulation Outside Diameter Range (Metric): 27.4-45.7 mm
  • Cable Shielding: Jacketed Concentric Neutral (JCN)
  • Cable Type: Jacketed Concentric Neutral (JCN) || Power Cable
  • Case Quantity: 1
  • Color Family: Gray
  • Conductor Material: Aluminum || Copper
  • Conductor Size by Voltage: (15 kV) 400-700 kcmil, (25/28 kV) 250-500 kcmil, (35 kV) 4/0 AWG-300 kcmil
  • Conductor Sizes: 1 AWG || 1/0 AWG || 2 AWG || 2/0 AWG || 250 kcmil || 3/0 AWG || 300 kcmil || 350 kcmil || 4/0 AWG || 400 kcmil || 450 kcmil || 500 kcmil || 600 kcmil || 700 kcmil
  • Connector Included: No
  • Connector Maximum Outside Diameter: 1.50 in
  • Connector Maximum Outside Diameter (Metric): 38.1 mm
  • Dielectric Strength (V/mil): 507 V/mil
  • Elongation: 750 %
  • Family: QT-II
  • Indoor/Outdoor: Outdoor Skirted
  • Insulation Level: 100% || 133%
  • Insulation Outer Diameter (Imperial): 1.08 in || 1.09 in || 1.1 in || 1.11 in || 1.12 in || 1.13 in || 1.14 in || 1.15 in || 1.16 in || 1.17 in || 1.18 in || 1.19 in || 1.2 in || 1.21 in || 1.22 in || 1.23 in || 1.24 in || 1.25 in || 1.26 in || 1.27 in || 1.28 in || 1.29 in || 1.3 in || 1.31 in || 1.32 in || 1.33 in || 1.34 in || 1.35 in || 1.36 in || 1.37 in || 1.38 in || 1.39 in || 1.4 in || 1.41 in || 1.42 in || 1.43 in || 1.44 in || 1.45 in || 1.46 in || 1.47 in || 1.48 in || 1.49 in || 1.5 in || 1.51 in || 1.52 in || 1.53 in || 1.54 in || 1.55 in || 1.56 in || 1.57 in || 1.58 in || 1.59 in || 1.6 in || 1.61 in || 1.62 in || 1.63 in || 1.64 in || 1.65 in || 1.66 in || 1.67 in || 1.68 in || 1.69 in || 1.7 in || 1.71 in || 1.72 in || 1.73 in || 1.74 in || 1.75 in || 1.76 in || 1.77 in || 1.78 in || 1.79 in || 1.8 in
  • Insulation Outer Diameter (Metric): 23.876 mm || 27.432 mm || 27.686 mm || 27.94 mm || 28.194 mm || 28.448 mm || 28.702 mm || 28.956 mm || 29.21 mm || 29.464 mm || 29.718 mm || 29.972 mm || 30.226 mm || 30.48 mm || 30.734 mm || 30.988 mm || 31.242 mm || 31.496 mm || 31.75 mm || 32.004 mm || 32.258 mm || 32.512 mm || 32.766 mm || 33.02 mm || 33.274 mm || 33.528 mm || 33.782 mm || 34.036 mm || 34.29 mm || 34.544 mm || 34.798 mm || 35.052 mm || 35.306 mm || 35.56 mm || 35.814 mm || 36.068 mm || 36.322 mm || 36.576 mm || 36.83 mm || 37.084 mm || 37.338 mm || 37.592 mm || 37.846 mm || 38.1 mm || 38.354 mm || 38.608 mm || 38.862 mm || 39.116 mm || 39.37 mm || 39.624 mm || 39.878 mm || 40.132 mm || 40.386 mm || 40.64 mm || 40.894 mm || 41.148 mm || 41.402 mm || 41.656 mm || 41.91 mm || 42.164 mm || 42.418 mm || 42.672 mm || 42.926 mm || 43.18 mm || 43.434 mm || 43.688 mm || 43.942 mm || 44.196 mm || 44.45 mm || 44.704 mm || 44.958 mm || 45.212 mm || 45.466 mm || 45.72 mm
  • Insulation Rejacketing: No
  • Jacket Outside Diameter Range: 1.37-2.02 in
  • Jacket Outside Diameter Range (Metric): 34.8-51.3 mm
  • Lug/Stem Connector Included in Kit: No
  • Manufacturing Origin: USA
  • Maximum Installed Length: 19.50 in
  • Number of Conductors: 1
  • Number of Skirts: 8
  • Product Color: Gray
  • Product Type: Splice
  • Voltage: 15 kV || 25 kV || 35 kV

Overview

UPC 05400711976
GTiN 00054007119760
Conductor Size 250 MCM; 300 MCM; 350 MCM; 4/0 AWG; 400 MCM; 450 MCM; 500 MCM; 600 MCM; 700 MCM
Applications Outdoor
Cable Type Jacketed Concentric Neutral (JCN)
Family Brand Name 3M
Voltage 35 kV
Indoor Outdoor Outdoor Skirted
Color Gray
