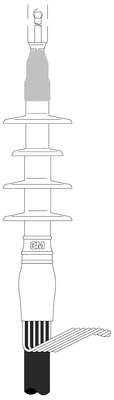

3M 5648 Cold Shrink 8 Skirt Jacketed Concentric Neutral Termination Kit
Product image thumbnail 0
Product image thumbnail 1
$315.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5648
Irby Part # 36243

Features

  • One-piece cold shrink termination.
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor, weather exposed applications
  • Silicone rubber insulation is track-resistance and hydrophobic
  • Silicone cold shrink application provides constant radial pressure, "living seal"
  • Voltage ratings: 4 skirt kits up to 15kV, 110 kV BIL; 6 skirt kits up to 25/28 kV, 150 kV BIL; 8 skirt kits up to 35 kV, 200 kV BIL
  • Meets IEEE Standard 48, Class 1 for outdoor, weather-exposed applications

Specifications

  • BIL: 200 kV
  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: 1.31-2.10 in
  • Cable Insulation Outside Diameter Range (Metric): 33.3-53.3 mm
  • Cable Shielding: Jacketed Concentric Neutral (JCN)
  • Conductor Size by Voltage: (15 kV) 750-1500 kcmil, (25/28 kV) 500-1250 kcmil, (35 kV) 350-1000 kcmil
  • Conductor Sizes: 600 kcmil - 750 kcmil - 350 kcmil - 1500 kcmil - 900 kcmil - 800 Kcmil - 1250 kcmil - 400 kcmil - 500 kcmil - 1000 kcmil - 700 kcmil
  • Family: QT-II
  • Indoor/Outdoor: Outdoor Skirted
  • Insulation Level: 133% - 100%
  • Insulation Outer Diameter (Imperial): 1.32 in - 1.73 in - 1.89 in - 1.85 in - 1.9 in - 1.54 in - 1.38 in - 1.98 in - 2 in - 1.41 in - 2.09 in - 1.66 in - 1.61 in - 1.43 in - 1.82 in - 1.75 in - 1.5 in - 1.56 in - 1.55 in - 1.99 in - 1.67 in - 1.84 in - 1.48 in - 1.95 in - 2.02 in - 2.06 in - 2.1 in - 1.74 in - 1.63 in - 1.44 in - 1.6 in - 1.47 in - 2.01 in - 1.69 in - 2.07 in - 1.78 in - 1.65 in - 2.05 in - 1.8 in - 1.58 in - 1.76 in - 1.64 in - 1.52 in - 1.91 in - 2.08 in - 1.79 in - 1.94 in - 1.72 in - 1.37 in - 1.7 in - 2.04 in - 1.59 in - 1.46 in - 2.03 in - 1.87 in - 1.4 in - 1.57 in - 1.42 in - 1.92 in - 1.33 in - 1.83 in - 1.34 in - 1.35 in - 1.45 in - 1.71 in - 1.31 in - 1.68 in - 1.96 in - 1.86 in - 1.97 in - 1.81 in - 1.49 in - 1.39 in - 1.51 in - 1.93 in - 1.88 in - 1.62 in - 1.36 in - 1.77 in - 1.53 in
  • Insulation Outer Diameter (Metric): 49.022 mm - 35.814 mm - 45.72 mm - 38.1 mm - 40.64 mm - 49.53 mm - 37.338 mm - 43.434 mm - 45.212 mm - 37.592 mm - 51.562 mm - 48.26 mm - 48.768 mm - 43.688 mm - 48.514 mm - 43.18 mm - 34.544 mm - 52.07 mm - 42.926 mm - 50.546 mm - 38.608 mm - 44.958 mm - 41.402 mm - 46.228 mm - 37.084 mm - 49.276 mm - 52.578 mm - 42.418 mm - 50.038 mm - 52.324 mm - 49.784 mm - 35.56 mm - 43.942 mm - 34.036 mm - 52.832 mm - 42.164 mm - 44.704 mm - 41.656 mm - 33.528 mm - 35.306 mm - 44.45 mm - 50.8 mm - 39.37 mm - 40.894 mm - 51.816 mm - 44.196 mm - 36.068 mm - 35.052 mm - 33.782 mm - 51.308 mm - 45.974 mm - 42.672 mm - 50.292 mm - 41.148 mm - 36.576 mm - 53.34 mm - 36.83 mm - 34.29 mm - 48.006 mm - 46.736 mm - 33.274 mm - 46.482 mm - 37.846 mm - 47.244 mm - 53.086 mm - 38.862 mm - 39.624 mm - 40.132 mm - 36.322 mm - 45.466 mm - 51.054 mm - 46.99 mm - 41.91 mm - 47.498 mm - 38.354 mm - 47.752 mm - 39.878 mm - 39.116 mm - 40.386 mm - 34.798 mm
  • Insulation Rejacketing: No
  • Jacket Outside Diameter Range: 1.62-2.55 in
  • Jacket Outside Diameter Range (Metric): 41.2-64.8 mm
  • Lug/Stem Connector Included in Kit: No
  • Maximum Installed Length: 19.75 in
  • Number of Conductors: 1
  • Number of Skirts: 8
  • RoHS EU Comments: Contact 3M for information
  • Voltage: 15 kV - 25 kV - 35 kV

Overview

UPC 05400711977
GTiN 00054007119777
Conductor Size 1000 MCM; 1250 MCM; 1500 MCM; 350 MCM; 400 MCM; 500 MCM; 600 MCM; 700 MCM; 750 MCM; 800 MCM; 900 MCM
Applications Outdoor
Cable Type Jacketed Concentric Neutral (JCN)
Family Brand Name 3M
Voltage 35 kV
Indoor Outdoor Outdoor Skirted
