3M 5649
Product image thumbnail 0
Product image thumbnail 1
$728.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5649
Irby Part # 2974491

Features

  • One-piece cold shrink termination.

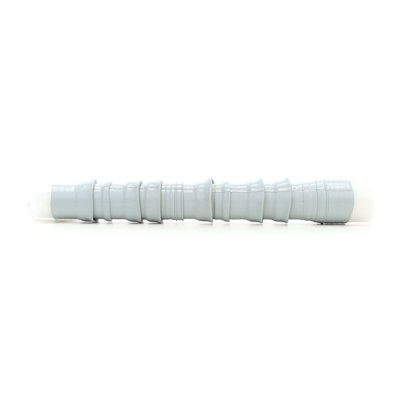

  • 3M™ Cold Shrink QT II 5640 & 5650 Series Termination Kit includes a 4 skirt, 1 piece termination. It ensures a pliable, tight seal for jacketed concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages up to 15kV.
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor, weather exposed applications
  • Silicone rubber insulation is track-resistance and hydrophobic
  • Silicone cold shrink application provides constant radial pressure, "living seal"
  • Voltage ratings: 4 skirt kits up to 15kV, 110 kV BIL; 6 skirt kits up to 25/28 kV, 150 kV BIL; 8 skirt kits up to 35 kV, 200 kV BIL
  • Meets IEEE Standard 48, Class 1 for outdoor, weather-exposed applications

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80610530687
  • Agency Approvals: IEEE
  • Brand: 3M™
  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: 1.80-2.30 in
  • Cable Insulation Outside Diameter Range (Metric): 45.7-58.4 mm
  • Cable Shielding: Jacketed Concentric Neutral (JCN) || Tape Shield
  • Case Quantity: 1
  • Conductor Size by Voltage: (35 kV) 1000-1500 kcmil
  • Conductor Sizes: 1000 kcmil || 1250 kcmil || 1500 kcmil
  • Family: QT-II
  • Indoor/Outdoor: Outdoor Skirted
  • Insulation Level: 100% || 133%
  • Insulation Outer Diameter (Imperial): 1.8 in || 1.81 in || 1.82 in || 1.83 in || 1.84 in || 1.85 in || 1.86 in || 1.87 in || 1.88 in || 1.89 in || 1.9 in || 1.91 in || 1.92 in || 1.93 in || 1.94 in || 1.95 in || 1.96 in || 1.97 in || 1.98 in || 1.99 in || 2 in || 2.01 in || 2.02 in || 2.03 in || 2.04 in || 2.05 in || 2.06 in || 2.07 in || 2.08 in || 2.09 in || 2.1 in || 2.11 in || 2.12 in || 2.13 in || 2.14 in || 2.15 in || 2.16 in || 2.17 in || 2.18 in || 2.19 in || 2.2 in || 2.21 in || 2.22 in || 2.23 in || 2.24 in || 2.25 in || 2.26 in || 2.27 in || 2.28 in || 2.29 in || 2.3 in
  • Insulation Outer Diameter (Metric): 45.72 mm || 45.974 mm || 46.228 mm || 46.482 mm || 46.736 mm || 46.99 mm || 47.244 mm || 47.498 mm || 47.752 mm || 48.006 mm || 48.26 mm || 48.514 mm || 48.768 mm || 49.022 mm || 49.276 mm || 49.53 mm || 49.784 mm || 50.038 mm || 50.292 mm || 50.546 mm || 50.8 mm || 51.054 mm || 51.308 mm || 51.562 mm || 51.816 mm || 52.07 mm || 52.324 mm || 52.578 mm || 52.832 mm || 53.086 mm || 53.34 mm || 53.594 mm || 53.848 mm || 54.102 mm || 54.356 mm || 54.61 mm || 54.864 mm || 55.118 mm || 55.372 mm || 55.626 mm || 55.88 mm || 56.134 mm || 56.388 mm || 56.642 mm || 56.896 mm || 57.15 mm || 57.404 mm || 57.658 mm || 57.912 mm || 58.166 mm || 58.42 mm
  • Insulation Rejacketing: No
  • Jacket Outside Diameter Range: 2.10-2.75 in
  • Jacket Outside Diameter Range (Metric): 53.4-69.8 mm
  • Lug/Stem Connector Included in Kit: No
  • Manufacturing Origin: USA
  • Maximum Installed Length: 21.00 in
  • Number of Conductors: 1
  • Number of Skirts: 8
  • Voltage: 35 kV

Overview

UPC 05400709958
GTiN 00054007099581
Conductor Size 1250 MCM
Applications Outdoor
Cable Type Jacketed Concentric Neutral (JCN)
Family Brand Name 3M
Voltage 35 kV
Number of Conductors 1
