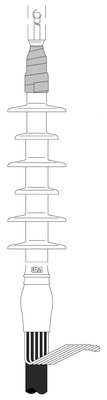

3M 5651-2 Cold Shrink 6 Skirt Jacketed Concentric Neutral Termination Kit

Overview

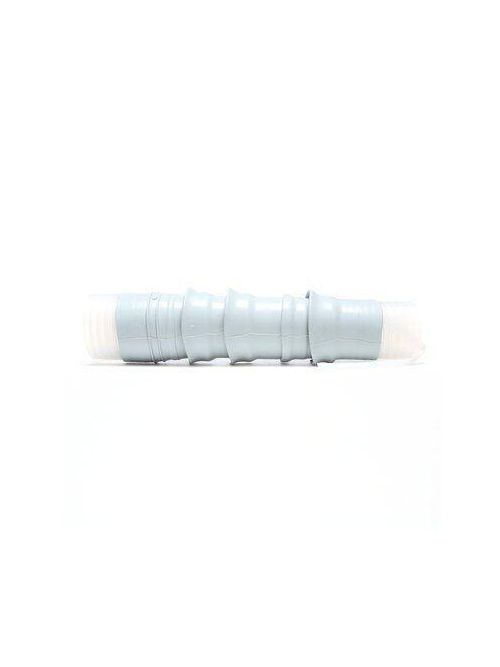

3M Cold Shrink QT-II terminations provide easy installation for a broad spectrum of indoor and outdoor applications. The Cold Shrink QT-II termination is based on specially formulated, track-resistant silicone rubber insulators with built-in Hi-K stress relief. The insulators are pre-stretched around a spiral -wound, plastic core. When the terminator is slipped over a properly prepared cable and the core is removed, the terminator immediately shrinks to the cable`s dimensions. The result is a void-free, flexible seal without special tools or torches. For Jacketed Concentric Neutral Cable

Conductor Size Range for

· 15 kV: 2 AWG

· 25/28 kV: 2 AWG

Specifications

• Voltage: 25/28 kV, 15 kV
• Breakout Boot: No
• Conductor Sizes: 2 AWG
• Number of Conductors: 1
• Family: QT-II
• Shielding Type: Jacketed Concentric Neutral (JCN)
• Indoor/Outdoor: Outdoor Skirted
• Number of Skirts: 6
• Cable Insulation Outside Diameter Range (metric): 16.3-28.4 mm
• Product Series: 5650
• Trademark: 3M
• RoHS EU Comments: Contact 3M for information
• Insulation Level: 100%, 133%
• Product Family: QT-II
• BIL: 150 kV
• Lug/Stem Connector Included in Kit: Yes
• Insulation Rejacketing: No
• Agency Approvals: IEEE
• Cable Insulation Outside Diameter Range: 0.64-1.12 in
• Maximum Installed Length: 13.00 in
• RoHS 2011/65/EU Compliant: Undetermined
