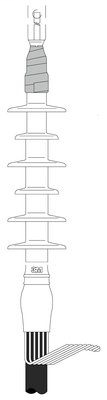

3M 5652-1/0 Cold Shrink 6 Skirt Jacketed Concentric Neutral Cable Termination Kit
Product image thumbnail 0
Product image thumbnail 1
$159.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5652-1/0
Irby Part # 48302

Features

  • One-piece cold shrink termination.
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor, weather exposed applications
  • Silicone rubber insulation is track-resistance and hydrophobic
  • Silicone cold shrink application provides constant radial pressure, "living seal"
  • Voltage ratings: 4 skirt kits up to 15kV, 110 kV BIL; 6 skirt kits up to 25/28 kV, 150 kV BIL; 8 skirt kits up to 35 kV, 200 kV BIL
  • Meets IEEE Standard 48, Class 1 for outdoor, weather-exposed applications

Specifications

  • Additional Kit Contents: (1) SC0010 Stem Connector
  • BIL: 150 kV
  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: 0.84-1.38 in
  • Cable Insulation Outside Diameter Range (Metric): 21.3-35.0 mm
  • Cable Shielding: Jacketed Concentric Neutral (JCN)
  • Conductor Size by Voltage: (15 kV) 1/0 AWG, (25/28 kV) 1/0 AWG
  • Conductor Sizes: 1/0 AWG
  • Family: QT-II
  • Indoor/Outdoor: Outdoor Skirted
  • Insulation Level: 133% - 100%
  • Insulation Outer Diameter (Imperial): 1.25 in - 1 in - 1.14 in - 0.86 in - 0.88 in - 0.96 in - 0.99 in - 1.15 in - 1.01 in - 0.97 in - 1.16 in - 1.32 in - 0.93 in - 1.31 in - 1.05 in - 0.95 in - 1.29 in - 0.94 in - 0.92 in - 1.36 in - 1.13 in - 1.35 in - 1.37 in - 1.34 in - 1.09 in - 1.2 in - 0.87 in - 1.28 in - 1.06 in - 1.19 in - 1.04 in - 1.27 in - 0.85 in - 1.33 in - 1.12 in - 1.24 in - 1.22 in - 1.3 in - 1.1 in - 1.18 in - 0.98 in - 1.07 in - 1.17 in - 1.02 in - 1.03 in - 1.21 in - 1.08 in - 0.9 in - 0.89 in - 1.26 in - 1.23 in - 0.91 in - 1.38 in - 1.11 in - 0.84 in
  • Insulation Outer Diameter (Metric): 21.844 mm - 24.638 mm - 25.4 mm - 34.29 mm - 22.86 mm - 28.702 mm - 34.036 mm - 33.02 mm - 30.988 mm - 33.274 mm - 25.908 mm - 34.544 mm - 30.734 mm - 29.464 mm - 29.718 mm - 23.368 mm - 33.528 mm - 22.606 mm - 25.146 mm - 24.13 mm - 23.114 mm - 31.242 mm - 24.892 mm - 35.052 mm - 30.226 mm - 26.67 mm - 30.48 mm - 22.352 mm - 23.876 mm - 27.94 mm - 25.654 mm - 26.924 mm - 32.004 mm - 27.686 mm - 26.416 mm - 22.098 mm - 21.59 mm - 27.432 mm - 32.258 mm - 28.194 mm - 28.956 mm - 23.622 mm - 32.512 mm - 33.782 mm - 27.178 mm - 26.162 mm - 34.798 mm - 24.384 mm - 29.21 mm - 21.336 mm - 31.75 mm - 31.496 mm - 28.448 mm - 29.972 mm - 32.766 mm
  • Insulation Rejacketing: No
  • Jacket Outside Diameter Range: 1.19-1.72 in
  • Jacket Outside Diameter Range (Metric): 30.2-43.6 mm
  • Lug/Stem Connector Included in Kit: Yes
  • Maximum Installed Length: 13.00 in
  • Number of Conductors: 1
  • Number of Skirts: 6
  • RoHS EU Comments: Contact 3M for information
  • Voltage: 15 kV - 25/28 kV

Overview

UPC 05400704818
Item Long Description 3M Cold Shrink QT II 5640 & 5650 Series Termination Kit includes a 4 skirt, 1 piece termination. It ensures a pliable, tight seal for jacketed concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages up to 15kV.
GTiN 00054007048183
Type QT-II
Conductor Size 1/0 AWG
Applications Outdoor
Cable Type Jacketed Concentric Neutral (JCN)
Family Brand Name 3M
Voltage 15 kV
Number of Conductors 1
