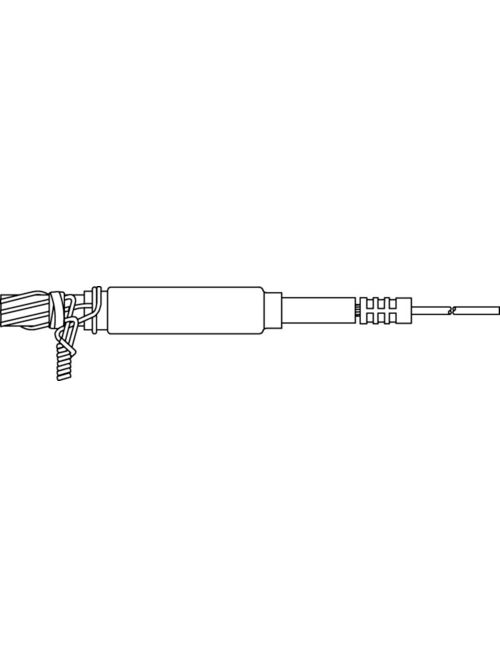

3M 5671 Cold Shrink Non-Skirted Termination Kit
$48.50/ea
Usually ships within 16 to 26 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5671
Irby Part # 22805

Overview

3M Cold Shrink QT II 5671 and 5672 kits will terminate CN or JCN cables. A Hi-K stress control tube insulated with a track-resistant silicone rubber tube are pre-stretched together onto a removable core. Meets IEEE Standard 48-1990. Each kit makes one termination.

Conductor Size Range for

ยท 15 kV: 2 AWG-250 kcmil

Specifications

  • RoHS 2011/65/EU Compliant: Undetermined
  • BIL: 110 kV
  • Number of Conductors: 1
  • Cable Insulation Outside Diameter Range (metric): 16.2-28.4 mm
  • RoHS EU Comments: Contact 3M for information
  • Breakout Boot: No
  • Family: QT-II
  • Number of Skirts: 0
  • Maximum Installed Length: 6.25 in
  • Insulation Rejacketing: No
  • Shielding Type: Jacketed Concentric Neutral (JCN), Concentric Neutral (CN)
  • Cable Insulation Outside Diameter Range: 0.64-1.12 in
  • Agency Approvals: IEEE
  • Lug/Stem Connector Included in Kit: No
  • Product Family: QT-II
  • Insulation Level: 100%, 133%
  • Voltage: 15 kV
  • Indoor/Outdoor: Indoor Non-skirted
  • Trademark: 3M
  • Product Series: 5670

Documents

Overview

UPC 05400733798
GTiN 00054007337980
Applications Indoor
Cable Type Concentric Neutral (CN); Jacketed Concentric Neutral (JCN)
Family Brand Name 3M
Voltage 5,000/15,000 Volt
Indoor Outdoor Indoor Non-skirted
