3M 5733 3-Core Low Voltage Splice Kit
$288.00/ea
Usually ships within 16 to 26 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5733
Irby Part # 2383886

Overview

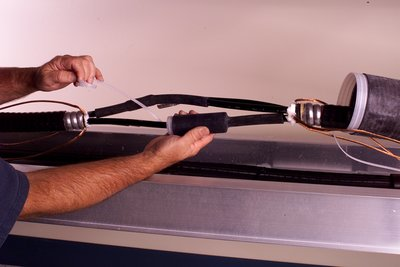

These kits are applicable for indoor and outdoor installations, including direct burial, aerial and submersible applications. The 5730 series accommodates a full range of cable sizes from 14 AWG-750 kcmil. The overall jacket diameter ranges from 0.62 to 4.0" (16 to 102 mm). For use with 3/C Armor Power Cable (Teck 90) up to 1000V.

Specifications

  • Voltage: 1 kV
  • Conductor Sizes: 250 kcmil, 2/0 AWG, 3/0 AWG, 4/0 AWG
  • Conductor Type: Aluminum or Copper
  • Cable Type: Armored Power Cable
  • Splice Type: Inline
  • Trademark: 3M
  • Overall Jacket Diameter: 1.15 to 3.3 Inch
  • RoHS EU Comments: Contact 3M for information
  • Number of Conductors: 3
  • Conductor Size Range: 2/0 AWG-250 kcmil
  • RoHS 2011/65/EU Compliant: Undetermined
  • Product Type: Splice

Documents

Overview

UPC 05400743174
GTiN 00054007431749
Cable Type Armored Power Cable
Cable Size 2/0 AWG; 250 kcmil; 3/0 AWG; 4/0 AWG
Family Brand Name 3M
Voltage 1 kV
Conductor Size 3/0 AWG
Conductor Type Copper,Aluminum
