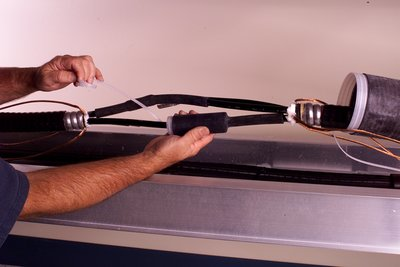

3M 5734 3-Core Low Voltage Splice Kit

Overview

These kits are applicable for indoor and outdoor installations, including direct burial, aerial and submersible applications. The 5730 series accommodates a full range of cable sizes from 14 AWG-750 kcmil. The overall jacket diameter ranges from 0.62 to 4.0" (16 to 102 mm). For use with 3/C Armor Power Cable (Teck 90) up to 1000V.

Specifications

• Splice Type: Inline
• Conductor Type: Aluminum or Copper
• RoHS 2011/65/EU Compliant: Undetermined
• Product Type: Splice
• RoHS EU Comments: Contact 3M for information
• Conductor Sizes: 250 kcmil, 500 kcmil, 400 kcmil, 300 kcmil, 350 kcmil
• Overall Jacket Diameter: 1.55 to 4.0 Inch
• Number of Conductors: 3
• Cable Type: Armored Power Cable
• Trademark: 3M
• Voltage: 1 kV
• Conductor Size Range: 250-500 kcmil
