Overview

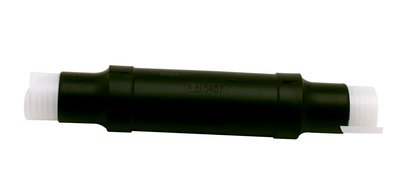

3M™ 5775A-MT Series Resin QS-III Inline Trifurcating Cable Splice Kit is designed for splicing 5/8 to 15 kV-rated shielded power cables. The cold shrink design ensures a quick installation and cable size transitions. This armored or non-armored splice kit is perfect for use in cable trays, cable racks, junction boxes and cable hangers, as well as aerial and wet or dry locations.
3M™ 5775A-MT Series Cold Shrink Resin QS-III Inline Cable Splice Kit includes 3 metallic shield sleeves, 6 small and 2 large constant force springs, 2 cold shrink jacket tubes, 1 roll Scotch-Seal™ mastic tape 2229 and more. This cable splice kit uses constant force springs for connecting ground braid jumpers, splice bodies and tapes for moisture-seal applications. The splice body has a specially formulated silicone rubber construction to ensure optimal high- and low-temperature performance. This splice kit is suitable for use with solid dielectric cables such as XLP, XLPE, EPR and more. IEEE Approved.
- Splices shielded cables
- Silicon rubber-splice body provides good high- or low-temperature performance and Armorcast™ jacket offers mechanical protection
- Suitable for use with 10000 and 20000 Series connectors or other UL Listed inline compression connectors
- Solderless ground braid offers constant force spring connection
- 0.64 to 1.01-in O.D. insulation
- Accommodates wire size of 2 AWG to 250 kcmil
- Rated for 5/8 to 15 kV applications
- Includes 6 cold shrink adapter tubes and 3 splice bodies, 6 tubes of P55/R compound, gloves, 3 rolls of Armorcast™ structural material and more
- IEEE Approved
- 1 kit/case
Specifications
- 3M ID: 80611218035
- Case Quantity: 1
- Conductor Sizes for 15 kV: 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG
- Conductor Sizes for 5_8 kV: 250 kcmil, 3/0 AWG, 4/0 AWG
- Insulation O.D. Range: 0.64 - 1.01 Inch
- Insulation Outside Diameter Range: 0.64 - 1.01 Inch
- Number of Conductors: 3
- Product Series: 5775A-MT, 5776A-MT & 5777A-MT Series
- Product Technology: Cold Shrink, Armorcast
- Product Type: Splice
- RoHS 2011/65/EU Compliant: Undetermined
- RoHS EU Comments: Contact 3M for information
- Shielding Type: Tape Shield
- Splice Type: Inline
- Suggested Accessory: 3M™ Trifurcating Accessory for 3-C to 3 Single Conductors MT-C
- Trademark: 3M
- Typical Splice Length: 52.0 in
- Typical Splice Length (metric): 132 cm
- Voltage: 15 kV, 5/8 kV
Legal Disclaimer
- Manufacturing Origin: USA
- The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
- Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
