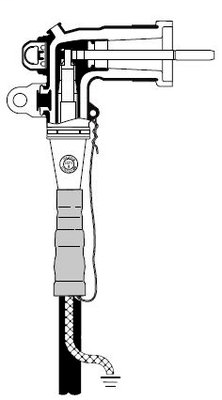

3M 5810-CA 5810-CA LOADBREAK ELBOW
$208.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5810-CA
Irby Part # 3718990

Overview

This kit contains an elbow body, loadbreak probe, probe installation tool, silicone lubricant, cold shrink jacketing tube, mastic strips, ground braid assembly, constant force spring, CC-3 cable cleaning pads, a cable adapter, and installation instructions

Specifications

  • Insulation Outside Diameter: 0.495 to 0.585 Inch
  • Product Series: 5810
  • RoHS 2011/65/EU Compliant: Undetermined
  • Insulation Diameter Range: 1.780-1.965 in
  • Insulation Level: 100%, 133%
  • Cable Voltage Rating: 8 kV, 15 kV
  • Insulation Diameter Range (metric): 45.2-49.9 mm
  • Component Type: Elbow
  • Family: 3M 200 Amp 5-15 kV Industrial Loadbreak Elbow
  • Conductor Size by Voltage: (8 kV, 100%) 2 AWG, Stranded, (5 kV, 133%) 1 AWG, Compact/Solid, (8 kV, 100%) 1 AWG, Compact/Solid, (5 kV, 133%) 2 AWG, Stranded, (5 kV, 100%) 2-1 AWG, Stranded, (5 kV, 100%) 1-1/0 AWG, Compact/Solid
  • Current Rating: 200 Ampere
  • Cable Type: Stranded, Compact/Solid
  • Conductor Sizes: 1/0 AWG, 1 AWG, 2 AWG
  • RoHS EU Comments: Contact 3M for information

Documents

Overview

UPC 05400704641
GTiN 00054007046417
Size 1 AWG; 1/0 AWG; 2 AWG
Family Brand Name 3M
Voltage 5,000/8,000 Volt
Conductor Size 1/0 AWG
Component Type Elbow
