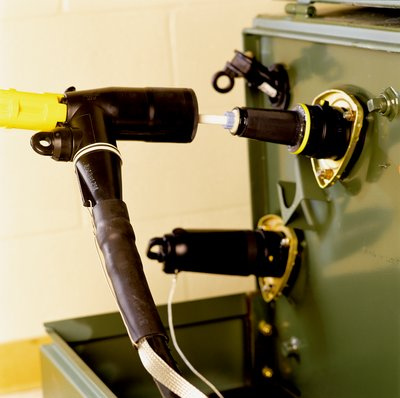

3M 5811-C-1/0 200 Amp Industrial Loadbreak Elbow
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 8 to 12 Days
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5811-C-1/0
Irby Part # 287204


  • Ideal for connecting underground cable to transformers, switchgear and junctions that come with loadbreak bushings
  • Locking ring ensures secure connection
  • Specially designed for use on tape shield, wire shield, UniShield® and jacketed concentric neutral types of cables
  • High-quality, peroxide-cured EPDM provides better insulation
  • Meets ANSI/IEEE Standard 386.


  • Cable Type: Compact/Solid - Stranded
  • Cable Voltage Rating: 25 kV
  • Component Type: Elbow
  • Conductor Size by Voltage: (25 kV, 133%) 1/0 AWG, Stranded - (25 kV, 100%) 1/0 AWG, Stranded - (25 kV, 100%) 2/0 AWG, Compact/Solid
  • Conductor Sizes: 2/0 AWG - 1/0 AWG
  • Current Rating: 200 Ampere
  • Family: 3M™ 200 Amp 25 kV Industrial Loadbreak Elbow
  • Includes Compression Connector: Yes
  • Insulation Diameter Range: 0.850-1.100 in
  • Insulation Diameter Range (Metric): 21.6-27.9 mm
  • Insulation Level: 100% - 133%
  • Maximum Insulation Outer Diameter (Imperial): 1.1 in
  • Maximum Insulation Outer Diameter (Metric): 28 mm
  • Maximum Operating Voltage: 25 kV
  • Product Type: Accessory
  • RoHS EU Comments: Contact 3M for information
  • Separable Connector Type: Load Break Elbows


UPC 05400743593
GTiN 00054007435938
Size 1/0 AWG; 2/0 AWG
Conductor Size 2/0 AWG
Component Type Elbow
Family Brand Name 3M
Voltage 25,000 Volt
