3M 5815-D 5815-D DEAD END
$784.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5815-D
Irby Part # 3656721

Overview

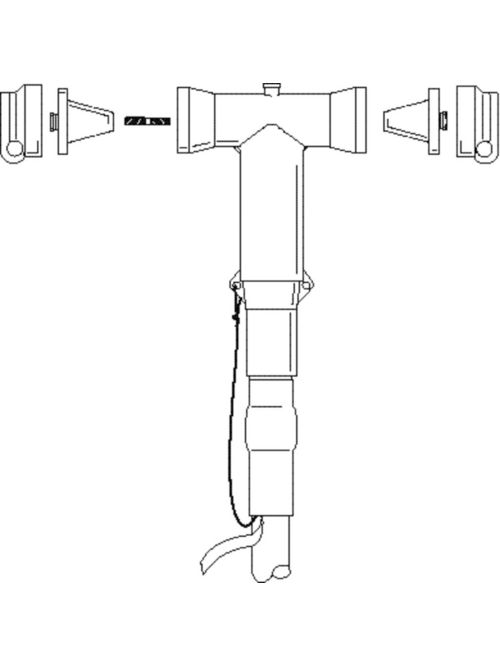

3M™ Dead-End Modular Kit contains all the accessories required for cable splicing. This kit contains 1 tee module, 2 dead-end plugs, 1 connecting stud and 1 silicone lubricant. The kit is rated for 5 to 25 kV and 600 amps industrial shielded power cables. The modular kit is suitable for operation in submerged locations.

3M™ Dead-End Modular Kit includes 1 tee module, 2 dead-end plugs, 1 connecting stud, 1 instruction booklet and 1 silicone lubricant. This kit is for dead-end splicing with future add-on capability in a modular design that allows for splicing configurations. The dead-end plug provides a high impedance test point for safely checking the de-energized status of the circuit.

  • Dead-ends tape shield, wire shield, UniShield® and JCN cables
  • Modular design for future splice applications.
  • Accommodates wire size of 2 AWG to 750 kcmil (stranded) (Cu) and 2 AWG to 1000 kcmil (stranded) (Al)
  • Rated for 5 to 25 kV, 600 amp
  • Includes 1 tee module, 2 dead-end plugs, 1 connecting stud, 1 instruction booklet and 1 silicone lubricant
  • Meets ANSI/IEEE Standard 386
  • 1 kit/case

Specifications

  • 3M ID: 80610983175
  • Current Rating: 600 Ampere
  • Family: 3M™ Dead-End Modular Kit
  • Product Series: 5815
  • Product Type: Splice
  • RoHS 2011/65/EU Compliant: Undetermined
  • RoHS EU Comments: Contact 3M for information
  • Separable Connector Type: Dead Break Elbows
  • Splice Type: Modular

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05400704233
GTiN 00054007042334
Applications Modular Splice
Family Brand Name 3M
Splice Type Modular
Product Type Splice
