3M 5815-E Modular Splice Equipment
$605.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5815-E
Irby Part # 545422

Overview

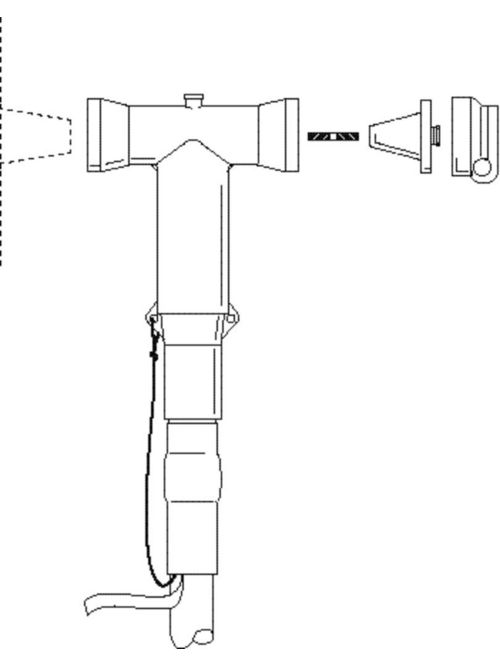

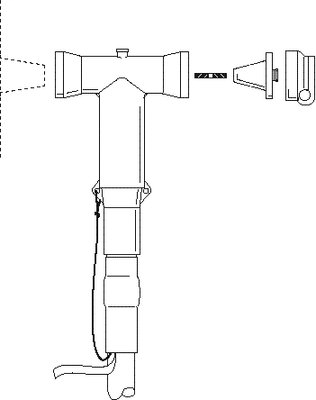

3M™ Modular Equipment Kit provides fully shielded, deadfront cable connections to apparatus such as transformers, oil switches and transformer switches by permitting a connection to standard, non-loadbreak, bushings and is rated for 600-amps, 5 to 25 kV cables.

3M™ Modular Equipment Kit includes 1 tee module, 1 dead-end plug, 1 connecting stud, 1 instruction booklet and silicone lubricant. This kit can accommodate stranded aluminum conductors of size 2 AWG to 1000 kcmil and copper conductors of size 2 AWG to 750 kcmil. Meets ANSI/IEEE standards.

  • Provides fully shielded, deadfront cable connections
  • Permits connection to standard non-loadbreak
  • Shielded connection for transformers, oil switches and transformer switches
  • Accommodates wire size of 2 AWG to 1000 kcmil (stranded) (Al) and 2 AWG to 750 kcmil (Cu)
  • Splices both aluminum and copper conductors
  • Includes 1 tee-module, 1 dead-end plug, 1 connecting stud, 1 instruction booklet and silicone lubricant
  • Rated for 5 to 25 kV and 600 amps applications
  • ANSI/IEEE Approved
  • 1 kit/case

Specifications

  • 3M ID: 80610983183
  • Current Rating: 600 Ampere
  • Family: 3M™ Modular Equipment Kit
  • Product Series: 5815
  • Product Type: Splice
  • RoHS 2011/65/EU Compliant: Undetermined
  • RoHS EU Comments: Contact 3M for information
  • Separable Connector Type: Dead Break Elbows
  • Splice Type: Modular

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05400704234
GTiN 00054007042341
Splice Type Modular
Product Type Splice
Applications Modular Splice
Handle Type N/A
Family Brand Name 3M
