3M 5815-T Add On Modular Splice Kit
$776.00/ea
Usually ships within 16 to 26 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5815-T
Irby Part # 22810

Overview

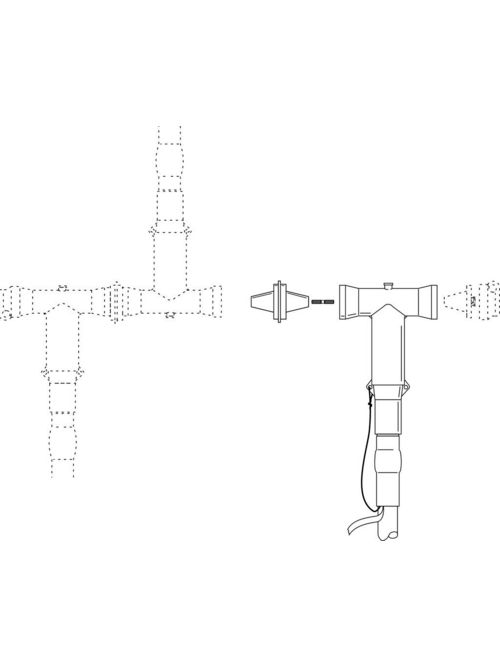

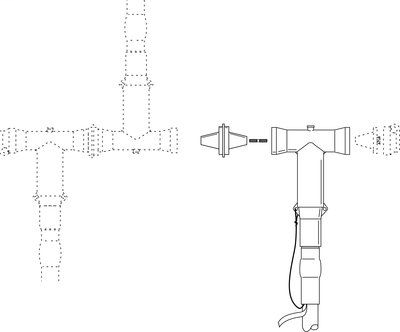

3M™ Modular Add-On Tap Splicing Kit contains all the accessories to tap onto an existing dead-end or to combine with a 3M™ Modular Splice 5815-S for a 3-way installation, all without disturbing the original connection. This kit can be connected with a 5815-E kit for connecting parallel feeds. This kit is rated for 5 to 25 kV and 600 amps.

3M™ Modular Add-On Tap Splicing Kit contains 1 tee-module, 1 connecting plug, 1 connecting stud, 1 instruction booklet and silicone lubricant. This kit can accommodate stranded aluminum conductors and copper conductors. Meets ANSI/IEEE Standard 386.

  • Splices tape shield, wire shield, UniShield® and JCN cables
  • Designed for connecting parallel feeds by combining with 5815-E equipment
  • Tap into an existing dead-end or to combine with a 5815-S splice for a 3-way installation
  • Accommodates wire size of 2 AWG to 750 kcmil (stranded) (Cu) and 2 AWG to 1000 kcmil (stranded) (Al)
  • Rated for 5 to 25 kV, 600-amp cables
  • Includes 1 tee module, 1 connecting stud, 1 connecting plug, 1 instruction booklet and silicon lubricant
  • Meets ANSI/IEEE Standard 386
  • 1 kit/case

Specifications

  • 3M ID: 80610983159
  • Current Rating: 600 Ampere
  • Family: 3M™ Modular Tap Splicing Kit
  • Product Series: 5815
  • Product Type: Splice
  • RoHS 2011/65/EU Compliant: Undetermined
  • RoHS EU Comments: Contact 3M for information
  • Separable Connector Type: Dead Break Elbows
  • Splice Type: Modular

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05400704231
GTiN 00054007042310
Applications Modular Splice
Family Brand Name 3M
Splice Type Modular
Product Type Splice
