3M 72-N4 Non-Re-Enterable Resin Splicing Kits
$238.00/ea
Usually ships within 16 to 26 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 72-N4
Irby Part # 36228

Overview

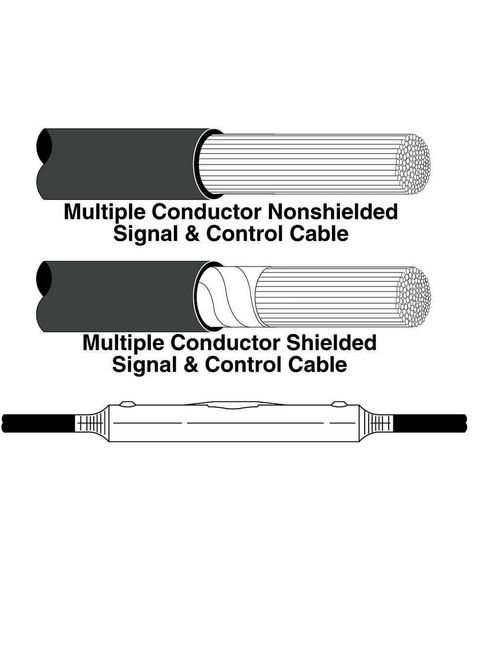

3M™ Scotchcast™ 72-N Series Inline Splice Kit is a 1 kV-rated, rigid body splice designed to join signal and control cables. It fits shielded or unshielded constructions of plastic or rubber-jacketed cables. It is perfect for inline splicing of shielded or unshielded cables, underground systems, joining of cable reel ends, direct burial applications, repair of cable failures and dig-ins.

3M™ Scotchcast™ 72-N Series Inline Splice Kit includes a 2-part translucent mold body, electrical insulating and sealing compound 2104, 2 pour spouts, Scotch® rubber splicing tape 23, non-conductive abrasive cloth, jumper wire and instructions. Tape 23 helps in sealing collars or splice body ends, and the jumper wire with clips offers solderless shield continuity on shielded cables. RoHS 2011/65/EU Compliant‎.

  • Rigid body splice for joining signal and control cables
  • Fits shielded construction of plastic or rubber-jacketed cables
  • Designed for inline splicing of underground systems, joining of cable reel ends, direct burial applications and repair of cable failures
  • Cable has 1 to 2-in O.D.
  • Rated for 1 kV applications
  • The polypropylene mold has a built-in spacer web that automatically offers cable centering and compound coverage
  • RoHS 2011/65/EU Compliant‎

Specifications

  • 3M ID: 80610072110
  • Cable Type: Non-Shielded Signal/Control Cable, Shielded Signal/Control Cable
  • Conductor Sizes: 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG
  • Insulation O.D. Range: 1.00 - 2.00 Inch
  • Insulation Outside Diameter Range: 1.00 - 2.00 Inch
  • Molded Body Length: 15.625 Inch
  • Product Type: Resin Splice
  • RoHS 2011/65/EU Compliant: RoHS 2011/65/EU Compliant, Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Shielding Type: Shielded
  • Splice Type: Resin
  • Trademark: Scotchcast
  • Voltage: 1 kV

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05400710629
GTiN 00054007106296
Cable Type Non-Shielded Signal/Control Cable; Shielded Signal/Control Cable
Family Brand Name 3M
Sub Brand Scotchcast
Voltage 1 kV
Splice Type Resin
Product Type Resin Splice
Conductor Size 18 AWG
