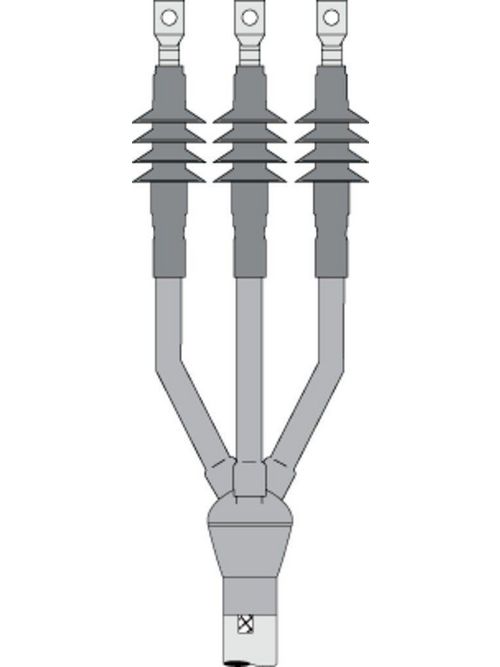

3M 7620-S-2-3W 7620-S-2-3W QT-III 3
Product image thumbnail 0
Product image thumbnail 1
$760.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7620-S-2-3W
Irby Part # 3783666

Features

  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor applications
  • Integrated design allows for easier installation in limited spaces, while sealing compounds provide constant radial pressure

Specifications

  • BIL: 95 kV
  • Breakout Boot: Yes
  • Cable Insulation Outside Diameter Range: 0.33-0.50 in
  • Cable Insulation Outside Diameter Range (Metric): 8.40-12.7 mm
  • Cable Shielding: UniShield® - Tape Shield - Wire Shield
  • Conductor Size by Voltage: (5 kV) 8-2 AWG, (8 kV) 6-4 AWG
  • Conductor Sizes: 8 AWG - 6 AWG - 4 AWG - 2 AWG
  • Family: QT-III
  • Indoor/Outdoor: Outdoor Skirted
  • Insulation Level: 133% - 100%
  • Insulation Outer Diameter (Imperial): 0.4 in - 0.42 in - 0.39 in - 0.35 in - 0.46 in - 0.49 in - 0.5 in - 0.48 in - 0.44 in - 0.45 in - 0.41 in - 0.37 in - 0.33 in - 0.34 in - 0.43 in - 0.36 in - 0.38 in - 0.47 in
  • Insulation Outer Diameter (Metric): 10.668 mm - 10.922 mm - 8.382 mm - 9.652 mm - 11.938 mm - 12.7 mm - 9.906 mm - 9.398 mm - 10.16 mm - 11.43 mm - 12.192 mm - 10.414 mm - 12.446 mm - 11.684 mm - 11.176 mm - 9.144 mm - 8.89 mm - 8.636 mm
  • Insulation Rejacketing: Yes
  • Lug/Stem Connector Included in Kit: No
  • Maximum Installed Length: 10.50 in
  • Number of Conductors: 3
  • Number of Skirts: 2
  • Product Technology: Cold Shrink
  • RoHS EU Comments: Contact 3M for information
  • Voltage: 5 kV - 8 kV

Overview

UPC 05400704748
GTiN 00054007047483
Conductor Size 6 AWG
Applications Outdoor
Cable Type Tape Shield; UniShield(R); Wire Shield
Family Brand Name 3M
Voltage 5 kV
Indoor Outdoor Outdoor Skirted
