Overview
3M™ Cold Shrink QT-III 7600-T-3-RJS Series Termination Kit includes a non-skirted, 3-phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric-constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
3M™ Cold Shrink QT-III 7600-T-3-RJS Series Termination Kit is designed for terminating medium voltage cables with or without internal ground wires. The UV stable, track-resistant construction makes the termination suitable for indoor applications. The lower surface stress, high dielectric-constant material offers an optimized BIL performance while ensuring a leak-proof, compact fit. JIS, IEC and AEIC Approved.
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress

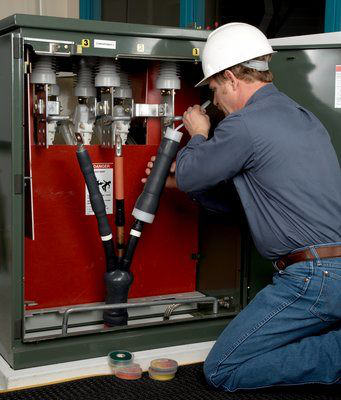

- Suitable for indoor applications and cabinet-mount installations
- Termination has 0.33 to 0.50-in insulation O.D.
- Accommodates wire sizes of 8 to 2 AWG at 5kV, 6 to 4 AWG at 8 kV
- Integrated design allows for easier installation, while sealing compounds provide constant radial pressure
- Withstands voltages of 5 to 35kV and is 95kV BIL-rated
- Includes a 3-phase, cold shrink termination
- JIS, IEC and AEIC Approved
Specifications
- 3M ID: 80610989271
- Agency Approvals: AEIC, IEC, JIS
- BIL: 95 kV
- Brand: 3M™
- Breakout Boot: No
- Cable Insulation Outside Diameter Range: 0.33-0.50 in
- Cable Insulation Outside Diameter Range (metric): 8.4-12.7 mm
- Case Quantity: 1
- Conductor Size by Voltage: (5 kV) 8-2 AWG, (8 kV) 6-4 AWG
- Conductor Sizes: 2 AWG, 4 AWG, 6 AWG, 8 AWG
- Family: QT-III
- Indoor/Outdoor: Indoor Non-skirted
- Insulation Rejacketing: Yes
- Lug/Stem Connector Included in Kit: No
- Maximum Installed Length: 8.50 in
- Number of Conductors: 3
- Number of Skirts: 0
- Product Series: 7600 RJS
- RoHS 2011/65/EU Compliant: Undetermined
- RoHS EU Comments: Contact 3M for information
- Shielding Type: Tape Shield, UniShield®, Wire Shield
- Trademark: 3M
- Voltage: 5 kV, 8 kV
- Voltage Application: Medium Voltage
