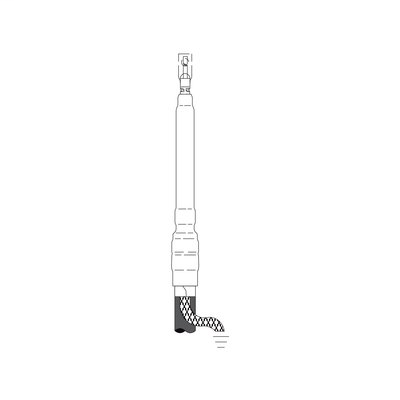

3M 7620-T-95 Cold Shrink Non-Skirted Termination Kit, 3 Terms per Kit
$333.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7620-T-95
Irby Part # 135990

Overview

The 3M Cold Shrink Silicone Rubber Short Termination QT-III, 7620-T-95 kit is designed for terminating (Solid) dielectric power cable rated 5-8kV in small spaces. Helps meet NEC 2005 Code for shielded cables of 2,400+ volts. Meets IEEE standard 48-1996. For primary insulation O.D. of 0.32" to 0.59" and 8-4 conductor range for 5kV and 8-6 range for 8.7kV. This one-piece, non-skirted silicone rubber termination comes with factory-applied, pre-positioned Hi-K stress control layers underneath the insulator. Its short installed length is excellent for installations in limited spaces, such as those with motors, starters, switchgear, variable speed drives, transformers and similar connections -- often reducing the need to add auxilitary boxes when enclosure space is limited. It`s based on cold shrink technology, field proven over 40 years since 3M invented it. Designed for a range of cable types including tape shield, wire shield and UniShield constructions. Ease of installation and built-in features help reduce risk of craft errors and provide lower total installed cost.

Conductor Size Range for

· 5 kV: 8-4 AWG

· 8 kV: 8-6 AWG

Specifications

  • Insulation Level: 100%, 133%
  • RoHS EU Comments: Contact 3M for information
  • Conductor Sizes: 8 AWG, 4 AWG, 6 AWG
  • Product Series: 7620-T
  • Trademark: 3M
  • Family: QT-III
  • Cable Insulation Outside Diameter Range: 0.32-0.59 in
  • Insulation Rejacketing: No
  • Lug/Stem Connector Included in Kit: No
  • Shielding Type: UniShield, Wire Shield, Tape Shield
  • Number of Skirts: 0
  • Indoor/Outdoor: Indoor Non-skirted
  • RoHS 2011/65/EU Compliant: Undetermined
  • Cable Insulation Outside Diameter Range (metric): 8.1-15.0 mm
  • Breakout Boot: No
  • Agency Approvals: IEEE
  • BIL: 95 kV
  • Number of Conductors: 1
  • Maximum Installed Length: 8.50 in
  • Voltage: 8 kV, 5 kV
  • Product Family: QT-III

Documents

Overview

UPC 05400741758
GTiN 00054007417583
Voltage 8 kV
Conductor Size 8 AWG
Applications Indoor
Cable Type Tape Shield; UniShield(R); Wire Shield
Family Brand Name 3M
Indoor Outdoor Indoor Non-skirted
