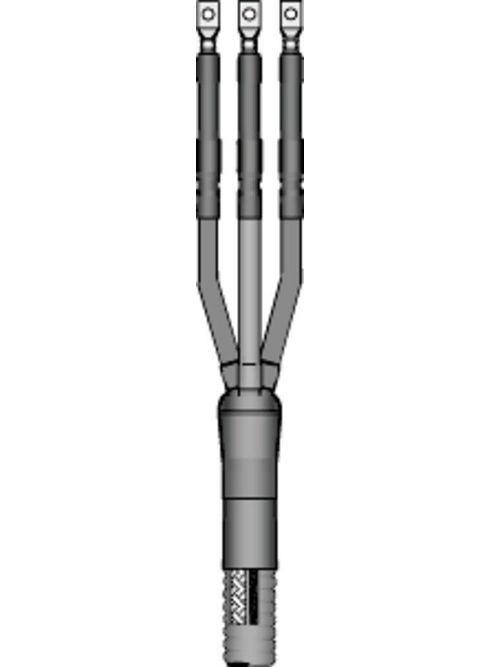

3M 7621-T-110-3G 7621-T-110-3G QT-I
Product image thumbnail 0
Product image thumbnail 1
$904.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7621-T-110-3G
Irby Part # 3566576

Features

  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for indoor applications
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions

Specifications

  • BIL: 110 kV
  • Breakout Boot: Yes
  • Cable Insulation Outside Diameter Range: 0.50-0.70 in
  • Cable Insulation Outside Diameter Range (Metric): 12.7-17.8 mm
  • Cable Shielding: Tape Shield - UniShield® - Wire Shield
  • Conductor Size by Voltage: (5 kV, 100%) 1-3/0 AWG, (5 kV, 133%) 2-2/0 AWG, (8 kV, 100%) 2-2/0 AWG, (8 kV, 133%) 2-2/0 AWG, (15 kV, 100%) 2-1 AWG
  • Conductor Sizes: 3/0 AWG - 1 AWG - 2 AWG - 1/0 AWG - 2/0 AWG
  • Family: QT-III
  • Indoor/Outdoor: Indoor Non-skirted
  • Insulation Level: 100% - 133%
  • Insulation Outer Diameter (Imperial): 0.51 in - 0.6 in - 0.5 in - 0.65 in - 0.63 in - 0.59 in - 0.57 in - 0.67 in - 0.58 in - 0.64 in - 0.52 in - 0.56 in - 0.68 in - 0.53 in - 0.7 in - 0.55 in - 0.62 in - 0.69 in - 0.66 in - 0.54 in - 0.61 in
  • Insulation Outer Diameter (Metric): 17.018 mm - 17.272 mm - 14.986 mm - 16.256 mm - 14.224 mm - 12.954 mm - 17.78 mm - 15.748 mm - 14.478 mm - 13.208 mm - 13.97 mm - 16.51 mm - 16.764 mm - 14.732 mm - 16.002 mm - 15.24 mm - 17.526 mm - 15.494 mm - 13.716 mm - 12.7 mm - 13.462 mm
  • Insulation Rejacketing: Yes
  • Lug/Stem Connector Included in Kit: No
  • Maximum Cable Outside Diameter: 2.80 in
  • Maximum Cable Outside Diameter (Metric): 71.1 mm
  • Maximum Installed Length: 12.00 in
  • Number of Conductors: 3
  • RoHS EU Comments: Contact 3M for information
  • Voltage: 8 kV - 5 kV - 15 kV
  • Voltage Application: Medium Voltage

Overview

UPC 05400743669
GTiN 00054007436690
Conductor Size 1 AWG
Applications Indoor
Cable Type Tape Shield; UniShield(R); Wire Shield
Family Brand Name 3M
Voltage 5 kV
Indoor Outdoor Indoor
