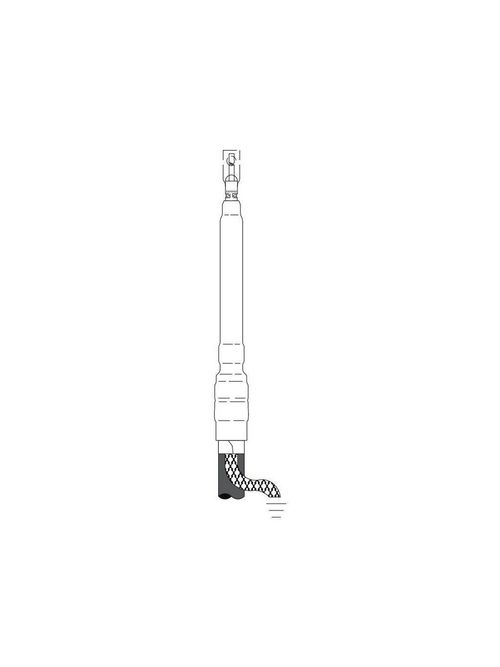

3M 7621-T-95 Cold Shrink 3 Terms/Kit Non-Skirted Termination Kit
Product image thumbnail 0
Product image thumbnail 1
$324.00/ea
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7621-T-95
Irby Part # 135991

Features

  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for indoor applications
  • Non-tracking, molded, silicone rubber insulation offers durability
  • Includes 3 non-skirted, 1-piece, 3-phase, cold shrink terminations

Specifications

  • BIL: 95 kV
  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: 0.44-0.89 in
  • Cable Insulation Outside Diameter Range (Metric): 11.2-22.6 mm
  • Cable Shielding: Wire Shield - UniShield® - Tape Shield - Wire-Over-Tape Shield - Tape Over Wire
  • Conductor Size by Voltage: (5 kV) 2-3/0 AWG, (8 kV) 4-2/0 AWG
  • Conductor Sizes: 1 AWG - 2/0 AWG - 4 AWG - 2 AWG - 3/0 AWG - 1/0 AWG
  • Family: QT-III
  • Indoor/Outdoor: Indoor
  • Insulation Level: 133% - 100%
  • Insulation Outer Diameter (Imperial): 0.65 in - 0.62 in - 0.86 in - 0.57 in - 0.64 in - 0.48 in - 0.52 in - 0.49 in - 0.84 in - 0.85 in - 0.78 in - 0.77 in - 0.7 in - 0.67 in - 0.58 in - 0.69 in - 0.68 in - 0.82 in - 0.44 in - 0.83 in - 0.45 in - 0.55 in - 0.51 in - 0.71 in - 0.89 in - 0.76 in - 0.66 in - 0.61 in - 0.46 in - 0.59 in - 0.5 in - 0.53 in - 0.79 in - 0.54 in - 0.74 in - 0.8 in - 0.73 in - 0.63 in - 0.72 in - 0.56 in - 0.87 in - 0.47 in - 0.88 in - 0.81 in - 0.6 in - 0.75 in
  • Insulation Outer Diameter (Metric): 12.446 mm - 20.066 mm - 20.574 mm - 22.606 mm - 16.51 mm - 21.844 mm - 16.764 mm - 22.352 mm - 13.208 mm - 12.954 mm - 11.938 mm - 17.526 mm - 18.542 mm - 16.002 mm - 12.7 mm - 21.082 mm - 19.558 mm - 19.812 mm - 14.986 mm - 17.272 mm - 14.224 mm - 11.684 mm - 19.05 mm - 14.732 mm - 22.098 mm - 18.288 mm - 13.716 mm - 21.59 mm - 11.43 mm - 18.796 mm - 17.018 mm - 19.304 mm - 17.78 mm - 18.034 mm - 13.462 mm - 11.176 mm - 21.336 mm - 15.494 mm - 15.24 mm - 14.478 mm - 20.828 mm - 20.32 mm - 13.97 mm - 12.192 mm - 16.256 mm - 15.748 mm
  • Insulation Rejacketing: No
  • Lug/Stem Connector Included in Kit: No
  • Maximum Installed Length: 8.50 in
  • Number of Conductors: 1
  • Number of Skirts: 0
  • Product Technology: Cold Shrink
  • RoHS EU Comments: Contact 3M for information
  • Voltage: 8.7 kV - 8 kV - 5 kV
  • Voltage Application: Medium Voltage

Overview

UPC 05400741759
GTiN 00054007417590
Voltage 8 kV
Conductor Size 1 AWG
Applications Indoor
Cable Type Tape Shield; UniShield(R); Wire Shield
Family Brand Name 3M
Indoor Outdoor Indoor
