3M 7622-S-2-3W 7622-S-2-3W QT-III 3
$1,104.00/ea
Usually ships within 16 to 26 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7622-S-2-3W
Irby Part # 3579796

Overview

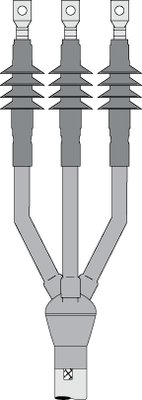

Each termination kit has all of the materials required to make a three conductor termination (except lugs, which must be ordered separately).

Conductor Size Range for

· 5 kV: 4/0 AWG-400 kcmil

· 8 kV: 3/0 AWG-350 kcmil

· 15 kV: 1/0-4/0 AWG

Specifications

  • Indoor/Outdoor: Outdoor Skirted
  • Insulation Rejacketing: Yes
  • Agency Approvals: JIS, IEC, AEIC
  • Product Series: 7600-3-W
  • Product Family: QT-III
  • Shielding Type: UniShield, Wire Shield, Tape Shield
  • Lug/Stem Connector Included in Kit: No
  • Number of Conductors: 3
  • Family: QT-III
  • BIL: 110 kV
  • RoHS EU Comments: Contact 3M for information
  • Number of Skirts: 2
  • Trademark: 3M
  • Conductor Sizes: 1/0 AWG, 250 kcmil, 2/0 AWG, 3/0 AWG, 400 kcmil, 300 kcmil, 4/0 AWG, 350 kcmil
  • Cable Insulation Outside Diameter Range (metric): 17.8-23.4 mm
  • Voltage: 8 kV, 5 kV, 15 kV
  • RoHS 2011/65/EU Compliant: Undetermined
  • Maximum Installed Length: 9.80 in
  • Breakout Boot: Yes
  • Cable Insulation Outside Diameter Range: 0.70-0.92 in

Documents

Overview

UPC 05400704750
GTiN 00054007047506
Conductor Size 3/0 AWG
Applications Outdoor
Cable Type Tape Shield; UniShield(R); Wire Shield
Family Brand Name 3M
Voltage 5,000/8,000/15,000 Volt
Indoor Outdoor Outdoor Skirted
