3M 7622-T-95 Cold Shrink 3 Terms/Kit Non-Skirted Termination Kit
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$396.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7622-T-95
Irby Part # 3294089

Overview

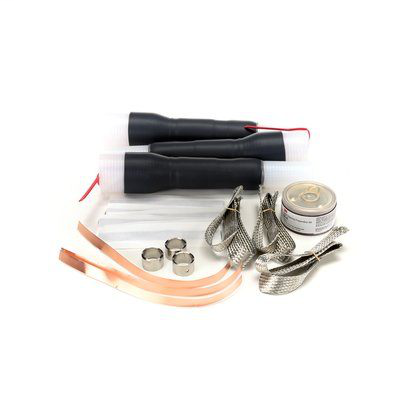

3M™ Cold Shrink QT-III 7620-T & 7690-T Series Termination Kit includes 3 non-skirted, 1-piece, 3-phase terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric-constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.

3M™ Cold Shrink QT-III 7620-T & 7690-T Series Termination Kit is designed for terminating solid dielectric-shielded, medium voltage cables. The UV stable, track-resistant, silicone rubber insulation of the termination has a hydrophobic property and offers a long-lasting service life. The lower surface stress, high dielectric-constant material offers an optimized BIL performance while ensuring a leak-proof, compact fit. IEEE Standard 48 Class 1 Approved for indoor and weather-protected applications.

  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for indoor applications
  • Termination has 0.64 to 1.08-in insulation O.D.
  • Accommodates wire sizes of 4/0 AWG to 400 kcmil at 5kV, 3/0 AWG to 300 kcmil at 8 kV
  • Non-tracking, molded, silicone rubber insulation offers durability
  • Withstands voltages of 5 to 35kV and is 95kV BIL-rated
  • Includes 3 non-skirted, 1-piece, 3-phase, cold shrink terminations
  • IEEE Standard 48 Class 1 Approved for indoor and weather-protected applications

Specifications

  • 3M ID: 80611440837
  • Agency Approvals: IEEE
  • BIL: 95 kV
  • Brand: 3M
  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: 0.64-1.08 in
  • Cable Insulation Outside Diameter Range (metric): 16.3-27.4 mm
  • Case Quantity: 1
  • Conductor Size by Voltage: (5 kV) 4/0 AWG-400 kcmil, (8 kV) 3/0 AWG-300 kcmil
  • Conductor Sizes: 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil
  • Family: QT-III
  • Indoor/Outdoor: Indoor Non-skirted
  • Insulation Level: 100%, 133%
  • Insulation Rejacketing: No
  • Lug/Stem Connector Included in Kit: No
  • Maximum Installed Length: 8.50 in
  • Number of Conductors: 1
  • Number of Skirts: 0
  • Product Series: 7620-T
  • RoHS 2011/65/EU Compliant: Undetermined
  • RoHS EU Comments: Contact 3M for information
  • Shielding Type: Tape Shield, UniShield®, Wire Shield
  • Trademark: 3M™
  • Voltage: 5 kV, 8 kV
  • Voltage Application: Medium Voltage

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112857483
GTiN 00051128574836
Voltage 8 kV
Number of Conductors 1
Conductor Size 250 MCM; 3/0 AWG; 300 MCM; 350 MCM; 4/0 AWG; 400 MCM
Applications Indoor
Cable Type Tape Shield; UniShield(R); Wire Shield
Family Brand Name 3M
