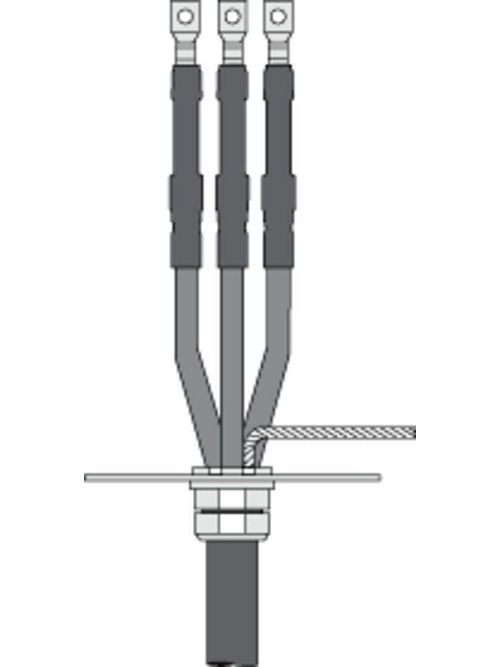

3M 7624-T-95-3-RJS Indoor 3 Conductor Termination
$896.00/ea
Usually ships within 16 to 26 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7624-T-95-3-RJS
Irby Part # 287069

Overview

3M™ Cold Shrink QT-III 7600-T-3-RJS Series Termination Kit includes a non-skirted, 3-phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric-constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.

3M™ Cold Shrink QT-III 7600-T-3-RJS Series Termination Kit is designed for terminating medium voltage cables with or without internal ground wires. The UV stable, track-resistant construction makes the termination suitable for indoor applications. The lower surface stress, high dielectric-constant material offers an optimized BIL performance while ensuring a leak-proof, compact fit. ‎ JIS,‎ IEC and AEIC Approved.

  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for indoor applications and cabinet-mount installations
  • Termination has 0.92 to 1.18-in insulation O.D.
  • Accommodates wire sizes of 500 to 750 kcmil at 5kV, 400 to 600 kcmil at 8 kV, 120 to 185 mm² at 15kV
  • Integrated design allows for easier installation, while sealing compounds provide constant radial pressure
  • Withstands voltages of 5 to 35kV and is 95kV BIL-rated
  • Includes a 3-phase, cold shrink termination
  • JIS,‎ IEC and AEIC Approved

Specifications

  • 3M ID: 80611443666
  • Agency Approvals: AEIC, IEC, JIS
  • Applications: Cable Connection
  • BIL: 95 kV
  • Brand: 3M™
  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: 0.92-1.18 in
  • Cable Insulation Outside Diameter Range (metric): 23.4-30.0 mm
  • Cable Type: MV-105, MV-90
  • Case Quantity: 1
  • Conductor Material: Aluminum, Copper
  • Conductor Size by Voltage: (5 kV) 500-750 kcmil, (8 kV) 400-600 kcmil
  • Conductor Sizes: 1 AWG, 1/0 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 4/0 AWG, 400 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil
  • Connector Included: None
  • Family: QT-III
  • Indoor/Outdoor: Indoor Non-skirted
  • Insulation Outside Diameter Range: 0.84 - 1.36 Inch
  • Insulation Rejacketing: Yes
  • Lug/Stem Connector Included in Kit: No
  • Maximum Installed Length: 8.50 in
  • Maximum Wire Gauge: 120mm²
  • Minimum Wire Gauge: 50mm²
  • Number of Conductors: 3
  • Number of Skirts: 0
  • Product Series: 7600-T-RJS
  • Product Type: Splice
  • RoHS 2011/65/EU Compliant: Undetermined
  • RoHS EU Comments: Contact 3M for information
  • Shielding Type: Tape Shield, UniShield®, Wire Shield
  • Splice Type: Inline
  • Trademark: 3M
  • Typical Splice Length: 30 in
  • Typical Splice Length (metric): 762 mm
  • Voltage: 15 kV, 25 kV, 35 kV, 5 kV, 8 kV
  • Voltage Application: Medium Voltage

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05400704708
GTiN 00054007047087
Conductor Size 400 MCM; 500 MCM; 600 MCM; 700 MCM; 750 MCM
Applications Indoor
Cable Type Tape Shield; UniShield(R); Wire Shield
Family Brand Name 3M
Voltage 5,000/8,000 Volt
Splice Type Inline
Product Type Splice
Number of Conductors 3
