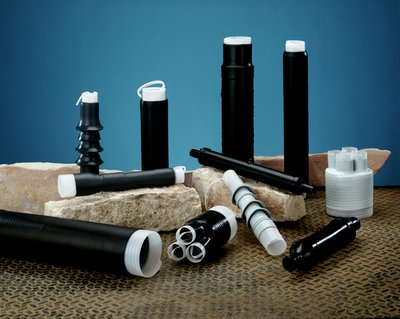

3M 7645-T-110 Cold Shrink Non-Skirted Termination Kit
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$170.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7645-T-110
Irby Part # 135997

Features

  • Provides a void-free seal to jacketed concentric neutral and concentric neutral power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for indoor applications
  • Non-tracking, silicone rubber insulation offers durability

Specifications

  • BIL: 110 kV
  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: 1.05-1.80 in
  • Cable Insulation Outside Diameter Range (Metric): 26.7-45.7 mm
  • Cable Shielding: Jacketed Concentric Neutral (JCN) - Concentric Neutral (CN)
  • Compatible Lug: QL2-A-350-750 - QL2-A-4/0-600
  • Conductor Size by Voltage: (5 kV) 700-1500 kcmil, (8 kV) 600-1250 kcmil, (15 kV) 500-1000 kcmil
  • Conductor Sizes: 600 kcmil - 500 kcmil - 1500 kcmil - 800 Kcmil - 750 kcmil - 1000 kcmil - 700 kcmil - 1250 kcmil - 900 kcmil
  • Family: QT-III
  • Indoor/Outdoor: Indoor Non-skirted
  • Insulation Level: 100% - 133%
  • Insulation Outer Diameter (Imperial): 1.65 in - 1.72 in - 1.64 in - 1.44 in - 1.4 in - 1.16 in - 1.24 in - 1.33 in - 1.35 in - 1.75 in - 1.05 in - 1.51 in - 1.41 in - 1.48 in - 1.13 in - 1.6 in - 1.37 in - 1.23 in - 1.79 in - 1.45 in - 1.56 in - 1.12 in - 1.39 in - 1.34 in - 1.55 in - 1.21 in - 1.06 in - 1.68 in - 1.46 in - 1.71 in - 1.11 in - 1.69 in - 1.59 in - 1.7 in - 1.54 in - 1.77 in - 1.28 in - 1.73 in - 1.31 in - 1.42 in - 1.63 in - 1.19 in - 1.74 in - 1.36 in - 1.22 in - 1.29 in - 1.57 in - 1.66 in - 1.18 in - 1.1 in - 1.27 in - 1.67 in - 1.53 in - 1.78 in - 1.38 in - 1.2 in - 1.5 in - 1.26 in - 1.62 in - 1.8 in - 1.14 in - 1.17 in - 1.15 in - 1.08 in - 1.3 in - 1.52 in - 1.43 in - 1.25 in - 1.49 in - 1.47 in - 1.07 in - 1.58 in - 1.76 in - 1.09 in - 1.61 in - 1.32 in
  • Insulation Outer Diameter (Metric): 33.528 mm - 29.972 mm - 31.75 mm - 43.942 mm - 38.608 mm - 42.672 mm - 34.544 mm - 29.464 mm - 27.686 mm - 35.56 mm - 37.592 mm - 28.194 mm - 45.466 mm - 28.448 mm - 38.1 mm - 42.164 mm - 38.354 mm - 32.258 mm - 33.274 mm - 44.45 mm - 32.004 mm - 36.83 mm - 37.084 mm - 28.702 mm - 27.94 mm - 37.846 mm - 35.814 mm - 41.148 mm - 26.67 mm - 42.926 mm - 30.988 mm - 44.196 mm - 30.734 mm - 41.91 mm - 32.512 mm - 39.37 mm - 34.29 mm - 40.132 mm - 31.496 mm - 40.386 mm - 39.624 mm - 35.306 mm - 27.178 mm - 29.718 mm - 38.862 mm - 26.924 mm - 33.02 mm - 44.704 mm - 30.226 mm - 41.656 mm - 45.212 mm - 32.766 mm - 33.782 mm - 34.036 mm - 35.052 mm - 36.576 mm - 45.72 mm - 43.434 mm - 40.894 mm - 29.21 mm - 36.322 mm - 44.958 mm - 30.48 mm - 42.418 mm - 34.798 mm - 31.242 mm - 43.18 mm - 39.116 mm - 40.64 mm - 41.402 mm - 39.878 mm - 37.338 mm - 36.068 mm - 28.956 mm - 27.432 mm - 43.688 mm
  • Insulation Rejacketing: No
  • Lug/Stem Connector Included in Kit: No
  • Maximum Installed Length: 12.00 in
  • Number of Conductors: 1
  • RoHS EU Comments: Contact 3M for information
  • Voltage: 5 kV - 8 kV - 15 kV
  • Voltage Application: Medium Voltage

Overview

UPC 05400741768
Item Long Description Quick installation with versatile one-piece designNo torches, heat or special tools requiredHi-K stress controlExcellent tracking resistanceIncludes everything required to make one single phase termination (except lug)
GTiN 00054007417682
Voltage 8 kV
Type QT-III
Conductor Size 1000 MCM; 1250 MCM; 1500 MCM; 500 MCM; 600 MCM; 700 MCM; 750 MCM; 800 MCM; 900 MCM
Applications Indoor
Cable Type Concentric Neutral (CN); Jacketed Concentric Neutral (JCN)
Family Brand Name 3M
Indoor Outdoor Indoor Non-skirted
