3M 7652-S-4(L) 7652-S-4(L) QT-III,TERMINATION KIT, COLD SHRINK, 15KV
$125.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7652-S-4(L)
Irby Part # 3788278

Features

  • Provides a void-free seal to jacketed concentric neutral and concentric neutral power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor applications
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions

Specifications

  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: ‎0.69-1.22 in
  • Cable Insulation Outside Diameter Range (Metric): ‎17,5-31,0 mm
  • Cable Shielding: Concentric Neutral (CN) - Jacketed Concentric Neutral (JCN)
  • Compatible Lug: QL2-A-2-250
  • Conductor Size by Voltage: (15 kV) 1/0-4/0 AWG
  • Conductor Sizes: 3/0 AWG - 4/0 AWG - 2/0 AWG - 1/0 AWG
  • Family: QT-III
  • Indoor/Outdoor: Outdoor Skirted
  • Insulation Level: 100%
  • Insulation Outer Diameter (Imperial): 0.84 in - 1.06 in - 1.12 in - 0.92 in - 0.86 in - 0.8 in - 0.98 in - 0.82 in - 0.93 in - 1.16 in - 1.05 in - 0.85 in - 1.08 in - 0.83 in - 0.89 in - 0.81 in - 1.11 in - 1.02 in - 1 in - 1.13 in - 1.17 in - 0.78 in - 0.96 in - 0.76 in - 1.22 in - 0.77 in - 1.01 in - 1.15 in - 0.87 in - 1.09 in - 1.19 in - 1.18 in - 1.1 in - 0.72 in - 0.7 in - 0.88 in - 0.73 in - 0.91 in - 0.95 in - 0.79 in - 0.9 in - 1.14 in - 0.71 in - 0.74 in - 0.69 in - 1.04 in - 0.75 in - 1.21 in - 1.03 in - 0.99 in - 0.97 in - 0.94 in - 1.2 in - 1.07 in
  • Insulation Outer Diameter (Metric): 28.702 mm - 21.844 mm - 23.876 mm - 22.352 mm - 17.526 mm - 30.988 mm - 24.384 mm - 30.48 mm - 22.606 mm - 19.05 mm - 19.558 mm - 26.924 mm - 17.78 mm - 18.796 mm - 19.304 mm - 27.686 mm - 22.86 mm - 18.542 mm - 29.21 mm - 21.59 mm - 20.828 mm - 26.67 mm - 29.464 mm - 26.416 mm - 29.718 mm - 19.812 mm - 25.146 mm - 27.178 mm - 18.288 mm - 29.972 mm - 25.654 mm - 20.574 mm - 24.892 mm - 28.194 mm - 21.336 mm - 27.432 mm - 20.066 mm - 30.734 mm - 30.226 mm - 23.622 mm - 23.114 mm - 25.4 mm - 24.13 mm - 20.32 mm - 21.082 mm - 27.94 mm - 26.162 mm - 24.638 mm - 22.098 mm - 23.368 mm - 28.448 mm - 28.956 mm - 25.908 mm - 18.034 mm
  • Insulation Rejacketing: No
  • Number of Conductors: 1
  • Number of Skirts: 3
  • Voltage: 15 kV

Overview

UPC 05112861064
Family Brand Name 3M

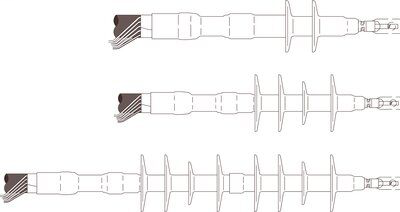

Item Long Description 3M Cold Shrink QT III 7640 S, 7650 S & 7660 S Series Termination Kit includes a 1 piece, skirted termination. It ensures a pliable, tight seal for jacketed concentric neutral and concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.
