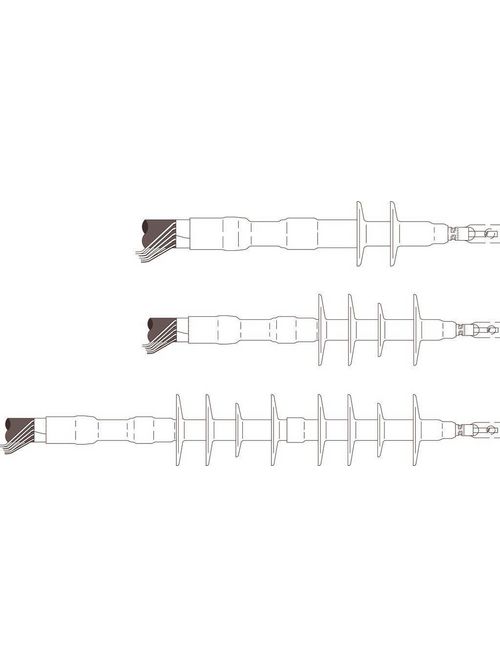

3M 7653-S-4 Cold Shrink 4 Skirt Termination
Product image thumbnail 0
Product image thumbnail 1
$168.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7653-S-4
Irby Part # 136006

Features

  • Provides a void-free seal to jacketed concentric neutral and concentric neutral power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor applications
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions

Specifications

  • BIL: 150 kV
  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: 0.72-1.29 in
  • Cable Insulation Outside Diameter Range (Metric): 18.3-32.8 mm
  • Cable Shielding: Jacketed Concentric Neutral (JCN) - Concentric Neutral (CN)
  • Compatible Lug: QL2-A-2-250
  • Conductor Size by Voltage: (5 kV) 300-500 kcmil, (8 kV) 250-500 kcmil, (15 kV) 2/0 AWG-300 kcmil, (25/28 kV) 2-4/0 AWG
  • Conductor Sizes: 2 AWG - 350 kcmil - 300 kcmil - 250 kcmil - 1/0 AWG - 2/0 AWG - 500 kcmil - 1 AWG - 400 kcmil - 3/0 AWG - 4/0 AWG
  • Family: QT-III
  • Indoor/Outdoor: Outdoor Skirted
  • Insulation Level: 133% - 100%
  • Insulation Outer Diameter (Imperial): 0.83 in - 1.24 in - 1.18 in - 1.14 in - 0.95 in - 0.94 in - 1.25 in - 1.13 in - 1.06 in - 1.02 in - 0.96 in - 1.26 in - 1.12 in - 1.01 in - 1.08 in - 0.89 in - 0.81 in - 1.22 in - 0.97 in - 1.19 in - 0.74 in - 1.03 in - 0.9 in - 0.88 in - 1.27 in - 0.86 in - 1.04 in - 0.77 in - 0.73 in - 0.72 in - 1.1 in - 0.82 in - 1.21 in - 1.09 in - 1.15 in - 0.93 in - 0.92 in - 0.8 in - 1.29 in - 1.11 in - 1 in - 1.28 in - 0.78 in - 0.85 in - 0.99 in - 1.05 in - 1.07 in - 1.2 in - 0.98 in - 0.84 in - 1.17 in - 0.75 in - 0.87 in - 0.76 in - 0.91 in - 1.23 in - 0.79 in - 1.16 in
  • Insulation Outer Diameter (Metric): 24.13 mm - 27.432 mm - 19.558 mm - 27.686 mm - 28.448 mm - 30.734 mm - 32.512 mm - 32.766 mm - 31.242 mm - 26.924 mm - 25.4 mm - 28.956 mm - 19.812 mm - 31.496 mm - 29.464 mm - 19.304 mm - 30.226 mm - 25.146 mm - 18.796 mm - 20.574 mm - 25.908 mm - 28.702 mm - 30.48 mm - 25.654 mm - 32.004 mm - 21.336 mm - 24.384 mm - 26.67 mm - 22.606 mm - 27.94 mm - 29.21 mm - 22.352 mm - 28.194 mm - 18.288 mm - 23.876 mm - 23.368 mm - 29.972 mm - 24.638 mm - 21.59 mm - 23.114 mm - 30.988 mm - 21.082 mm - 20.066 mm - 26.416 mm - 24.892 mm - 18.542 mm - 26.162 mm - 32.258 mm - 31.75 mm - 20.32 mm - 21.844 mm - 23.622 mm - 27.178 mm - 22.86 mm - 29.718 mm - 22.098 mm - 20.828 mm - 19.05 mm
  • Insulation Rejacketing: No
  • Lug/Stem Connector Included in Kit: No
  • Maximum Installed Length: 12.25 in
  • Number of Conductors: 1
  • Number of Skirts: 4
  • RoHS EU Comments: Contact 3M for information
  • Voltage: 15 kV - 8 kV - 25 kV - 5 kV
  • Voltage Application: Medium Voltage

Overview

UPC 05400742192
Item Long Description Quick installation with versatile one-piece designNo torches, heat or special tools requiredHi-K stress controlExcellent tracking resistance, UV resistance and water-shedding propertiesIncludes everything required to make one single phase termination (except lug)Conductor size ranges: 5 kV: 300-500 kcmil8 kV: 250-500 kcmil15 kV: 2/0 AWG-300 kcmil25/28 kV: 2-4/0 AWG
GTiN 00054007421924
Voltage 5 kV
Type QT-III
Conductor Size 1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 MCM; 3/0 AWG; 300 MCM; 350 MCM; 4/0 AWG; 400 MCM; 500 MCM
Applications For Outdoor Use
Cable Type Concentric Neutral (CN); Jacketed Concentric Neutral (JCN)
Family Brand Name 3M
Indoor Outdoor Outdoor Skirted
Length 12-1/4 in
Used With 0.72 - 1.29 in Primary Insulation OD
