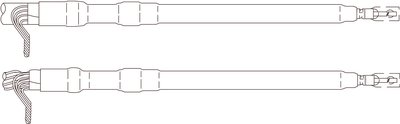

3M 7653-T-150 Cold Shrink Non-Skirted Termination Kit
$165.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7653-T-150
Irby Part # 135998

Overview

3M Cold Shrink QT-III terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The unique step-core design combined with the built in Hi-K stress control and silicone sealing compounds means simpler installation on all types of cable. It has UV stability and track and erosion resistance. Plus its Hi-K stress control design delivers excellent BIL performance and lower surface stress resulting in a more compact termination. Through superior engineering, 3M Cold Shrink QT-III Terminations deliver maximum performance.

Conductor Size Range for

· 5 kV: 300-500 kcmil

· 8 kV: 250-500 kcmil

· 15 kV: 2/0 AWG-300 kcmil

· 25/28 kV: 2-4/0 AWG

· 35 kV: 2-2/0 AWG

Specifications

  • Trademark: 3M
  • Product Family: QT-III
  • RoHS 2011/65/EU Compliant: Undetermined
  • Number of Skirts: 0
  • Agency Approvals: IEEE
  • Cable Insulation Outside Diameter Range: 0.72-1.29 in
  • Insulation Level: 100%, 133%
  • Product Series: 7650-T-150
  • Lug/Stem Connector Included in Kit: No
  • Indoor/Outdoor: Indoor Non-skirted
  • Breakout Boot: No
  • Family: QT-III
  • Maximum Installed Length: 16.00 in
  • Cable Insulation Outside Diameter Range (metric): 18.3-32.8 mm
  • Voltage: 8 kV, 35 kV, 25/28 kV, 5 kV, 15 kV
  • Conductor Sizes: 1/0 AWG, 250 kcmil, 2/0 AWG, 1 AWG, 500 kcmil, 450 kcmil, 3/0 AWG, 400 kcmil, 2 AWG, 300 kcmil, 4/0 AWG, 350 kcmil
  • Shielding Type: Jacketed Concentric Neutral (JCN), Concentric Neutral (CN)
  • Number of Conductors: 1
  • Insulation Rejacketing: No
  • BIL: 150 kV
  • RoHS EU Comments: Contact 3M for information

Documents

Overview

UPC 05400741772
GTiN 00054007417729
Voltage 35 kV
Conductor Size 1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 MCM; 3/0 AWG; 300 MCM; 350 MCM; 4/0 AWG; 400 MCM; 450 MCM; 500 MCM
Applications Indoor
Cable Type Concentric Neutral (CN); Jacketed Concentric Neutral (JCN)
Family Brand Name 3M
Indoor Outdoor Indoor Non-skirted
