3M 7654-S-HSG-4 Cold Shrink 4 Skirt Termination
Product image thumbnail 0
Product image thumbnail 1
$300.00/ea
Usually ships within 16 to 26 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7654-S-HSG-4
Irby Part # 136008

Overview

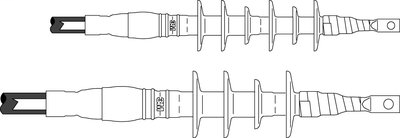

3M™ Cold Shrink QT-III 7650-S-HSG & 7660-S-HSG Series Termination Kit includes a single-phase, high-fault current termination. It ensures a pliable, tight seal for tape shield, longitudinally corrugated shield and wire-over-tape shield power cables. The conjunction of high dielectric-constant material and silicone sealing compounds allow the termination to withstand voltages of 5 to 35kV.

3M™ Cold Shrink QT-III 7650-S-HSG & 7660-S-HSG Series Termination Kit is designed for terminating medium voltage, solid dielectric-shielded power cables. The UV stable, track- and erosion-resistant construction makes the termination suitable for outdoor applications. The lower surface stress, high dielectric-constant material provides an optimized BIL performance while ensuring a leak-proof, compact fit. IEEE Approved.

  • Provides a void-free seal to tape shield, longitudinally corrugated shield and wire-over-tape shield power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor applications
  • Termination has 0.83 to 1.53-in insulation O.D.
  • Accommodates wire sizes of 500 to 750 kcmil at 5kV, 350 to 700 kcmil at 8 kV, 4/0 AWG to 500 kcmil at 15kV, 2/0 AWG to 250 kcmil at 25/28 kV
  • Unique step-core design and silicone sealing compounds enable easier installation
  • Withstands voltages of 5 to 35kV and is 150 kV BIL-rated
  • Includes a single-phase, cold shrink termination
  • IEEE Approved

Specifications

  • 3M ID: 80610839997
  • Agency Approvals: IEEE
  • BIL: 150 kV
  • Brand: 3M™
  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: 0.83-1.53 in
  • Cable Insulation Outside Diameter Range (metric): 21.1-38.9 mm
  • Case Quantity: 1
  • Compatible Lug: QL2-A-1/0-350, QL2-A-2-250, QL2-A-4/0-600
  • Conductor Size by Voltage: (5 kV) 500-750 kcmil, (8 kV) 350-700 kcmil, (15 kV) 4/0 AWG-500 kcmil, (25/28 kV) 2/0 AWG-250
  • Conductor Sizes: 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil
  • Family: QT-III
  • Indoor/Outdoor: Outdoor Skirted
  • Insulation Level: 100%, 133%
  • Insulation Rejacketing: No
  • Lug/Stem Connector Included in Kit: No
  • Maximum Installed Length: 12.25 in
  • Number of Conductors: 1
  • Number of Skirts: 4
  • Product Series: 7650-S-HSG
  • RoHS 2011/65/EU Compliant: Undetermined
  • RoHS EU Comments: Contact 3M for information
  • Shielding Type: Longitudinally Corrugated (LC), Tape Shield, Wire-Over-Tape Shield
  • Trademark: 3M
  • Voltage: 15 kV, 25/28 kV, 5 kV, 8 kV
  • Voltage Application: Medium Voltage

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05400742199
GTiN 00054007421993
Voltage 5 kV
Number of Conductors 1
Conductor Size 2/0 AWG; 250 MCM; 3/0 AWG; 300 MCM; 350 MCM; 4/0 AWG; 400 MCM; 500 MCM; 600 MCM; 700 MCM; 750 MCM
Applications Outdoor
Cable Type Longitudinally Corrugated (LC); Tape Shield; Wire-Over-Tape Shield
Family Brand Name 3M
