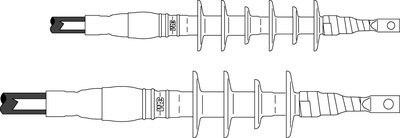

3M 7655-S-HSG-4 Cold Shrink 4 Skirt High Amp Termination
Product image thumbnail 0
Product image thumbnail 1
$324.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7655-S-HSG-4
Irby Part # 136010

Overview

3M Cold Shrink QT-III Outdoor terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The unique step-core design combined with the built in Hi-K stress control and silicone sealing compounds means simpler installation on all types of cable. It has UV stability and track and erosion resistance. Plus its Hi-K stress control design delivers excellent BIL performance and lower surface stress resulting in a more compact termination. Through superior engineering, 3M Cold Shrink QT-III Outdoor terminations deliver maximum performance.

Conductor Size Range for

· 5 kV: 700-1500 kcmil

· 8 kV: 600-1250 kcmil

· 15 kV: 500-1000 kcmil

· 25/28 kV: 250-800 kcmil

Specifications

  • Insulation Level: 100%, 133%
  • Maximum Installed Length: 12.25 in
  • Cable Insulation Outside Diameter Range (metric): 26.7-45.7 mm
  • Breakout Boot: No
  • Conductor Sizes: 1500 kcmil, 750 kcmil, 250 kcmil, 500 kcmil, 1000 kcmil, 800 kcmil, 700 kcmil, 600 kcmil, 400 kcmil, 300 kcmil, 1250 kcmil, 900 kcmil, 350 kcmil
  • Agency Approvals: IEEE
  • Product Family: QT-III
  • Cable Insulation Outside Diameter Range: 1.05-1.80 in
  • Indoor/Outdoor: Outdoor Skirted
  • Family: QT-III
  • Voltage: 8 kV, 25/28 kV, 5 kV, 15 kV
  • Insulation Rejacketing: No
  • RoHS 2011/65/EU Compliant: Undetermined
  • Number of Skirts: 4
  • Shielding Type: Longitudinally Corrugated (LC), Wire-Over-Tape Shield, Tape Shield
  • Lug/Stem Connector Included in Kit: No
  • BIL: 150 kV
  • RoHS EU Comments: Contact 3M for information
  • Product Series: 7650-S-HSG
  • Number of Conductors: 1
  • Trademark: 3M

Documents

Overview

UPC 05400742207
GTiN 00054007422075
Voltage 5 kV
Conductor Size 1000 MCM; 1250 MCM; 1500 MCM; 250 MCM; 300 MCM; 350 MCM; 400 MCM; 500 MCM; 600 MCM; 700 MCM; 750 MCM; 800 MCM; 900 MCM
Applications Outdoor
Cable Type Longitudinally Corrugated (LC); Tape Shield; Wire-Over-Tape Shield
Family Brand Name 3M
Indoor Outdoor Outdoor Skirted
