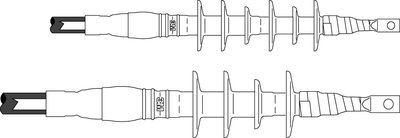

3M 7656-S-HSG-4 Cold Shrink 4 Skirt Termination
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$297.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7656-S-HSG-4
Irby Part # 3551585

Features

  • Provides a void-free seal to tape shield, longitudinally corrugated shield and wire-over-tape shield power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor applications
  • Unique step-core design and silicone sealing compounds enable easier installation

Specifications

  • BIL: 150 kV
  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: 1.53-2.32 in
  • Cable Insulation Outside Diameter Range (Metric): 38.9-58.9 mm
  • Cable Shielding: Longitudinally Corrugated (LC) - Tape Shield - Wire-Over-Tape Shield
  • Compatible Lug: QL2-A-1000-1250
  • Conductor Size by Voltage: (5 kV) 1750-2000 kcmil, (8 kV) 1500-2000 kcmil, (15 kV) 1250-2000 kcmil, (25/28 kV) 900-1750 kcmil
  • Conductor Sizes: 1750 kcmil - 2000 kcmil - 1500 kcmil - 1250 kcmil - 900 kcmil - 1000 kcmil
  • Family: QT-III
  • Indoor/Outdoor: Outdoor Skirted
  • Insulation Level: 133% - 100%
  • Insulation Outer Diameter (Imperial): 2.25 in - 1.62 in - 2.32 in - 1.92 in - 2.28 in - 1.54 in - 1.65 in - 1.74 in - 1.95 in - 1.99 in - 2.22 in - 1.56 in - 1.6 in - 2 in - 1.82 in - 2.03 in - 2.01 in - 2.31 in - 2.08 in - 1.97 in - 1.75 in - 2.2 in - 2.14 in - 1.9 in - 1.81 in - 2.23 in - 2.26 in - 2.13 in - 2.11 in - 2.17 in - 1.69 in - 1.71 in - 1.94 in - 1.87 in - 1.96 in - 2.12 in - 2.15 in - 1.66 in - 1.84 in - 2.29 in - 2.02 in - 2.09 in - 1.78 in - 2.04 in - 1.83 in - 1.8 in - 1.98 in - 1.76 in - 1.67 in - 2.07 in - 2.27 in - 1.86 in - 2.05 in - 1.59 in - 1.68 in - 1.79 in - 1.58 in - 1.63 in - 1.7 in - 2.18 in - 2.19 in - 2.3 in - 1.55 in - 1.93 in - 2.1 in - 1.64 in - 2.24 in - 1.77 in - 1.53 in - 1.91 in - 1.72 in - 1.61 in - 1.73 in - 1.57 in - 1.88 in - 1.85 in - 2.21 in - 2.06 in - 2.16 in - 1.89 in
  • Insulation Outer Diameter (Metric): 43.18 mm - 55.88 mm - 52.578 mm - 56.642 mm - 47.752 mm - 54.864 mm - 54.61 mm - 58.928 mm - 46.736 mm - 50.8 mm - 42.164 mm - 44.704 mm - 46.482 mm - 52.07 mm - 48.26 mm - 49.022 mm - 50.292 mm - 43.942 mm - 55.372 mm - 49.784 mm - 49.53 mm - 56.134 mm - 41.656 mm - 40.132 mm - 45.72 mm - 42.926 mm - 39.878 mm - 55.626 mm - 47.498 mm - 53.594 mm - 38.862 mm - 57.912 mm - 44.196 mm - 43.434 mm - 48.006 mm - 54.102 mm - 43.688 mm - 50.038 mm - 58.674 mm - 45.212 mm - 40.386 mm - 58.42 mm - 51.054 mm - 44.958 mm - 57.658 mm - 45.974 mm - 39.624 mm - 41.148 mm - 40.894 mm - 57.15 mm - 45.466 mm - 46.228 mm - 54.356 mm - 56.896 mm - 53.848 mm - 44.45 mm - 49.276 mm - 57.404 mm - 48.768 mm - 53.086 mm - 39.116 mm - 52.832 mm - 48.514 mm - 53.34 mm - 41.91 mm - 50.546 mm - 42.672 mm - 41.402 mm - 47.244 mm - 42.418 mm - 40.64 mm - 56.388 mm - 51.562 mm - 39.37 mm - 55.118 mm - 51.816 mm - 58.166 mm - 51.308 mm - 52.324 mm - 46.99 mm
  • Insulation Rejacketing: No
  • Lug/Stem Connector Included in Kit: No
  • Maximum Installed Length: 13.25 in
  • Number of Conductors: 1
  • Number of Skirts: 4
  • RoHS EU Comments: Contact 3M for information
  • Voltage: 25 kV - 15 kV - 8 kV - 5 kV
  • Voltage Application: Medium Voltage

Overview

UPC 05400742209
Item Long Description 3M Cold Shrink QT III 7650 S HSG & 7660 S HSG Series Termination Kit includes a single phase, high fault current termination. It ensures a pliable, tight seal for tape shield, longitudinally corrugated shield and wire over tape shield power cables. The conjunction of high dielectric constant material and silicone sealing compounds allow the termination to withstand voltages of 5 to 35kV.
GTiN 00054007422099
Type QT-III
Conductor Size 1000 MCM; 1250 MCM; 1500 MCM; 1750 MCM; 2000 MCM; 900 MCM
Applications Outdoor
Cable Type Longitudinally Corrugated (LC); Tape Shield; Wire-Over-Tape Shield
Family Brand Name 3M
Voltage 8 kV
Indoor Outdoor Outdoor Skirted
