3M 7695-S-4-3-RJS 7695-S-4-3-RJS QT
Product image thumbnail 0
Product image thumbnail 1
$1,400.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7695-S-4-3-RJS
Irby Part # 287085

Features

  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor applications and cabinet-mount installations
  • Integrated design allows for easier installation, while sealing compounds provide constant radial pressure

Specifications

  • BIL: 150 kV
  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: 1.18-1.52 in
  • Cable Insulation Outside Diameter Range (Metric): 30.0-38.6 mm
  • Cable Shielding: Tape Shield - Wire Shield - UniShield®
  • Conductor Size by Voltage: (5 kV) 800-1000 kcmil, (8 kV) 750-1000 kcmil, (15 kV) 500-750 kcmil, (25/28 kV) 300-500 kcmil
  • Conductor Sizes: 1000 kcmil - 300 kcmil - 800 Kcmil - 350 kcmil - 750 kcmil - 700 kcmil - 500 kcmil - 900 kcmil - 600 kcmil - 400 kcmil
  • Family: QT-III
  • Indoor/Outdoor: Outdoor Skirted
  • Insulation Level: 133% - 100%
  • Insulation Outer Diameter (Imperial): 1.4 in - 1.2 in - 1.25 in - 1.34 in - 1.18 in - 1.27 in - 1.41 in - 1.28 in - 1.39 in - 1.48 in - 1.32 in - 1.21 in - 1.23 in - 1.44 in - 1.31 in - 1.47 in - 1.26 in - 1.5 in - 1.35 in - 1.3 in - 1.22 in - 1.46 in - 1.43 in - 1.36 in - 1.19 in - 1.45 in - 1.38 in - 1.29 in - 1.37 in - 1.49 in - 1.51 in - 1.52 in - 1.42 in - 1.24 in - 1.33 in
  • Insulation Outer Diameter (Metric): 35.306 mm - 37.084 mm - 37.592 mm - 35.052 mm - 34.036 mm - 31.242 mm - 33.02 mm - 31.496 mm - 38.354 mm - 36.83 mm - 30.226 mm - 33.528 mm - 29.972 mm - 32.766 mm - 36.576 mm - 32.258 mm - 38.608 mm - 34.544 mm - 35.56 mm - 37.338 mm - 32.004 mm - 37.846 mm - 30.988 mm - 34.29 mm - 34.798 mm - 30.48 mm - 33.274 mm - 36.068 mm - 31.75 mm - 33.782 mm - 36.322 mm - 35.814 mm - 30.734 mm - 32.512 mm - 38.1 mm
  • Insulation Rejacketing: Yes
  • Lug/Stem Connector Included in Kit: No
  • Maximum Installed Length: 12.25 in
  • Number of Conductors: 3
  • Number of Skirts: 4
  • RoHS EU Comments: Contact 3M for information
  • Voltage: 15 kV - 8 kV - 5 kV - 25 kV

Overview

UPC 05400704728

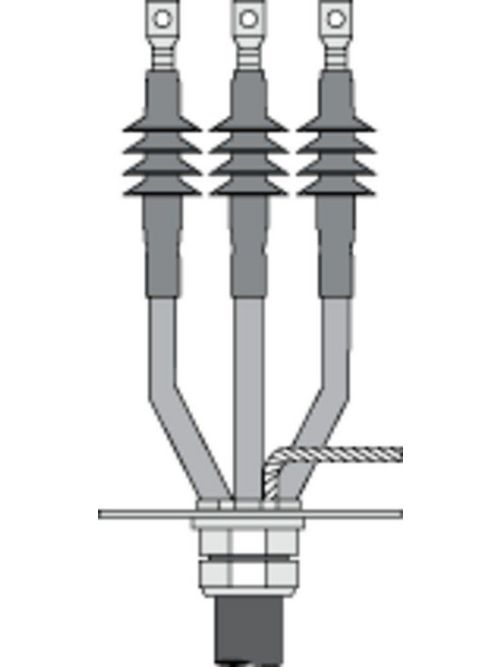

Item Long Description 3M Cold Shrink QT III 7600 S 3RJS Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
GTiN 00054007047285
Type QT-III
Conductor Size 350 MCM
Applications Outdoor
Cable Type Tape Shield; UniShield(R); Wire Shield
Family Brand Name 3M
Voltage 8 kV
Indoor Outdoor Outdoor Skirted
